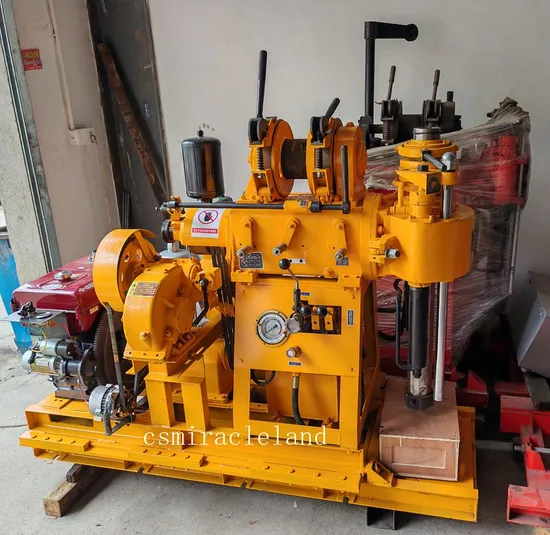

Portable Rotary Hydraulic Water Well Borehole Core Drilling Machine (XY-200)

Product Description

Product Description XY-200 Multifunction Water Well Drilling Rig:
1, This drill for the high-speed drilling machine is suitable for the exploration, water well drilling, road and building exploration, etc.
2, Can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc.
3. The rig using a mechanical drive, rotary structure, rotary torque, long life;
4. Four groups of vertical shaft box bearings positioning gyrator has sufficient rigidity response to the gravel layer, gravel layer, and the complex geological conditions;
5. The machine adopts the taper of the national patent clutch, with a large torque, easy to operate, the salient features of the maintenance-free;
6. The machine equipped with a flow rate of 160L/min one mud pump, with cost savings, compact, mobile and lightweight;
7. Rig bulk portfolio, the whole removable nature, transportation, relocation convenience, and not subject to topography constraints;
8. Rig manipulation, the use of performance, easy maintenance, less investment and quick. Product Parameters The technical parameters of the XY-200 water well drilling rig:

Drilling capacity
Drilling depth	200m
Hole diameter	75mm-300mm
Drill rod diameter	42mm
Angle range	90°-75°
Dimensions(L*W*H)	1750*860*1300mm
Weight(without power unit)	525kgs
Swivel head
Spindle speed(4-speed)	115, 230, 505, 1010 r/m
Spindle stroke	450mm
Upward displacements speed of idling vertical spindle	0.05m/s
Downward displacements speed of idling vertical spindle	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity Max.	25KN
Spindle max.Torque	1.25KNN.m
Brake diameter	278mm
Brake belt width	50mm
Hoist
Max.lifting capacity(single rope)	15KN
Hosting drum linear velocity(two levels)	0.166,0.331,0.733,1.465m/s
Hoisting drum revolution	19,38,84,168 r/min
Drum diameter	140mm
Wire rope diameter	9.3m
Wire ripe capability	35m
Oil pump
Model	YBC-20/125
Rated presure	12.5Mpa
Displacement	20ml/r
Rated speed	2000r/min
BW-160 water pump
Model	Horizontal reciprocating-acting piston pump
Displacement max.	160L/min
Working pressure max.	1.3Mpa
Liner diameter	95mm
Piston stroke	85mm
Power(diesel engine or motor)
Model(diesel engine)	ZS1115
Rated power	16.2KW
Rated speed	2200r/min
Model (Motor)	Y160M-4
Rated power	11KW
Rated speed	1460r/min
