US$7,000.00-21,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Computerized
Computerized
Transport Package
Wooden Package
Production Capacity
Output(Kg/H): 0-100
Product Description

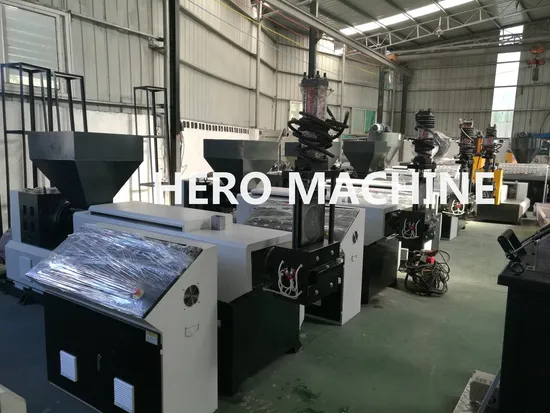

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same
Discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance,
And favorable economic benefit.
1. Main Technical Variables:
ModelSJ-B90SJ-B100SJ-B110SJ-B120
Type Diameter of Screw Stem φ 90φ 100φ 110φ 120
Major Diameter Ratio of Screw StemL/D 20: 1 L/D 20: 1 L/D 20: 1L/D 20: 1
Rational Speed of Screw Stem10-100r/min10-100r/min10-100r/min10-100r/min
Main Motor Power22kw30kw37kw45kw
Output68kg/h95kg/h120kg/h135kg/h
Weight of overall(kg) 2600kg2800kg3000kg3200kg
Cover dimensions (l× W× H) (mm)4000× 1500× 18004000× 1500× 18004000× 1500× 18004000× 1500× 1800
| Model | SJ-90 | SJ-100 | SJ-110 | SJ-120 |
| Diameter of ScrewStem | 85mm | 95mm | 105mm | 110mm |
| Major Diameter Ratio of Screw Stem | 20:1-22:1(L/D) | 20:1-22:1(L/D) | 20:1-22:1(L/D) | 20:1-22:1(L/D) |
| Rationl Speed of Screw | 10-110rpm | 10-110rpm | 10-110rpm | 10-110rpm |
| Main Motor Power | 22kw | 30kw | 30kw | 37kw |
| Output | 60kg/h | 90kg/h | 110kg/h | 130kg/h |
| Machine Weight | 2t | 2.1t | 2.2t | 2.5t |
| Overail Dimensions(LxWxH) | 5800*1500*1100 | 5900*1300*1200 | 6000*1350*1300 | 6200*1400*1350 |
>>
