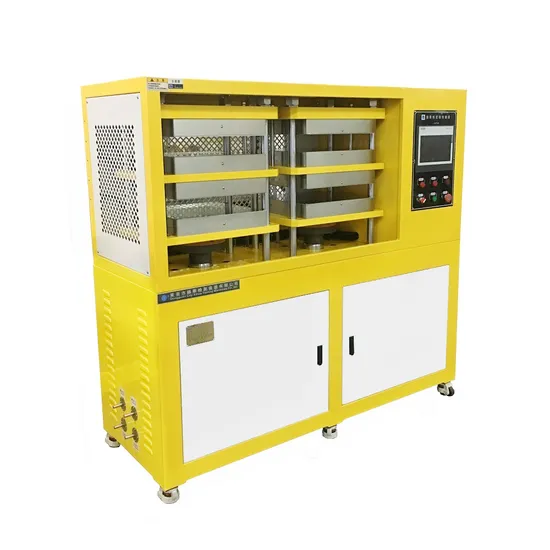

Two Layers Heat and Cold Platen Press Machine

Product Description

Product Application:
Mainly used in rubber, plastics, polyolefin, PVC, film, coil, profile, pigments, masterbatch, stabilizer and so on. Its main purpose is to test the raw materials' physical properties change after press. Such as: color dispersion, light transmittance, glossiness of the surface of the material, presence or absence of black spots, the strength, plasticity, hardness change after adding auxiliary materials.
Suitable for factory acceptance of the physical properties of suppliers' raw materials, comparison of similar products, and the use of research and development departments of colleges and universities to develop new products. It can be used as a reference for materials before mass production in the factory.
Typical application:
1. Detection of gel (fisheye), black spots, stains, etc. of raw materials
2. Raw material compression, color matching, mixing, sample preparation
3. Materials physical property test
4. Thermoforming of the common rubber, plastic and their composites;
5. Heated pressurized sulfide processing of the common rubber;
6. Preparation of simple rubber vulcanization products;
7. Vulcanization research of the common rubber;
8. Rubber formula design;
9. Optimization and control of rubber vulcanization technology;
Features:
1. The press machine have small size but complete in functions, stable temperature and low noise. Easy to operate, save materials and accurate temperature. Suitable for laboratory research and development of new products.
2. The controller has the function of proportional bandwidth adjustment and automatic reset.
3. Equipped with a temperature digital display to display the temperature of each plate.
4. The large-diameter hydraulic cylinder of solid steel structure contacts the movable worktable, which evenly distributes the load and reduces the plate deviation.
5. High-performance hydraulic system, with automatic pressure compensation function, can preset the time and pressure of the first pressurization and the second pressurization. Automatic pressurization and pressure relief, supplemented by high-precision oil cylinders, with a capacity of 10-100 tons
6. High-precision, high-wear-resistant guide column, strong load force, stable lifting, and extremely wear-resistant
7. Using imported KDB electric heating plate material, high temperature resistance, corrosion resistance, fast heat transfer, not easy to deform
8. High-precision temperature sensor, with LED temperature controller and built-in dense spot heating wire, tubular condenser, temperature range 5ºC to 400ºC
Technical Parameter:

XH-406B-30-300	Applicable materials	rubber and plastics
	Capacity	30 Ton
	Temperature range	room temperature - 300°C
	Temperature control accuracy	±2°C
	Press plate dimension	300mm*300mm
	Cooling method	running water cooling
	Heating working layer	2 Layers
	Cooling working layer	2 Layers
	Control mode	PLC control
	Power supply	380V/50Hz/3 phases or Customized

Machine Pictures:
Control Panel: Pressure Plates:
Samples Sheets:
Our Workshop:
Our client's laboratory:
Our Team:

---
