Qt4-20 Cement Cement Brick Making Machine Semi Automatic Prices for Sale

Product Description

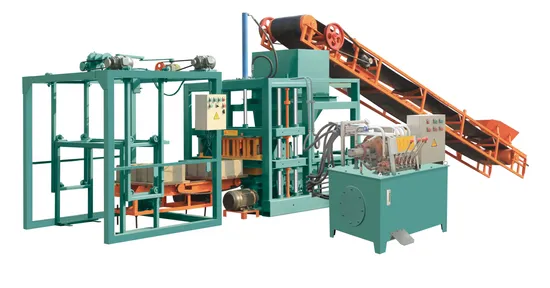

QT4-20 hydraulic automatic cement interlock brick making machinery for sale

Sales Manager:Sally Wu


1.Capacity table of QT4-20 semi automatic hydraulic brick machine

Brick kind	Brick size	Pcs/mold	Mouding cycle	Pcs/hour	Pcs/day
Hollow brick	400*200*200	4pcs	20-25s	720pcs	7200pcs/day
Porous brick	240*115*90	14pcs	20-23s	2500pcs	25000pcs/day
Standard brick	240*115*53	28pcs	20-15s	5000pcs	50000pcs/day

2.Main Technical Parameters of QT4-20 semi automatic hydraulic brick machine

Main Technical Specifications
Dimension	7100*1600*2610mm
Rated pressure	16MPa
Main vibration	platform
Vibration frequency	4600r /min
Pallet Size	1020*570*25mm
Molding Cycle	20-25(s)
Overall Power	27.5kw
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields	widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc.

3.Contact information


4. Our Services

Quality Guarantee
Our professional engineer would test machine carefully before loading,so please rest assure.

Selling is only the beginning of our service

1).our good aftersale service would provide our customer with both the technology and the skills.

2).our overseas technicians would be there to help installation and teach the using method.

3).we could provide the manual brochure if needed.

5.Company information

Shandong Shengya Machinery Co.,LTD. was founded in 1995, We have been always working for theconcrete block machines and mixers design, production and sales. For many years we have to perfect the quality, export block machines to more than 90 countries and regions, and also have office inNigeria, Tanzania&Algeria&Kenya&Ethiopia&Congo and Cameroon now, then can serve the clients much better.
6.Warmly welcome to visit our factory.Shengya is ur best choice!

---
