cUL PVC AC90 8/3 12/2 14/2 Electrical Electric Building Armoured PVC Electric Enameled Copper Acwu90 Power Cable Wire Canadian House Underground Construction

Product Description

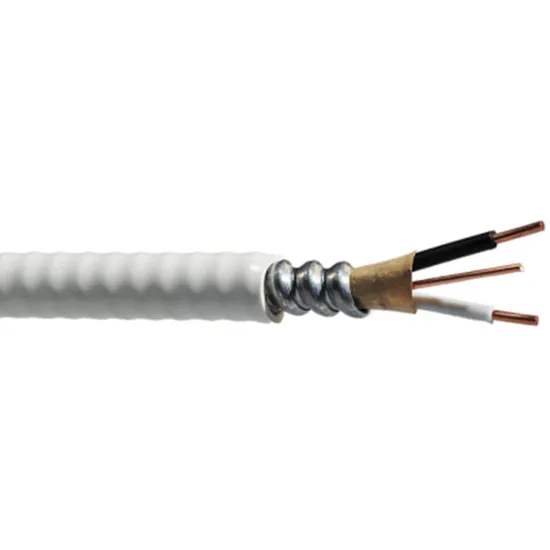

Product Description AC90 Cable Aluminium armor HT cables Hebei huatong cables for Canada market

Construction:

Conductor:solid or stranded copper
Insulation:Cross-Linked Polyethylene- xlpe(RW90) or flame retartant PVC+Nylon
Groud (Bonding core) conductor: bare solid or stranded copper
Armor: interlocked aluminum armor or Galvanized Steel Interlocking Armour

• Temperature Rating: -40°C---90°C
• flame retartant and an oil resistant
• FT4 Test


Applications:
For concealed wiring in dry or wet locations For exposed wiring in dry or wet locations
For exposed and wiring in dry, locations where subjected to corrosive action if suitable for corrosive conditions encountered
For exposed wiring where subjected to the weather
For use in ventilated, Non-ventilated and ladder-type cable trays in dry or wet locations
For direct earth burial (with protection as required by inspection authority)
For service entrance above or below ground

Features:
Rated at 90°C wet or dry Excellent crush resistance Provides long service life Cost effective alternative to installations in conduit Meets cold bend and impact tests at (-40°C)
Compliances: Industry
compliances: UL Standard C22.2 No. 131, No.38 and No.2256, RoHS Flame test
compliances: UL FT4 Hazardous Location, SUN RES (outer jacket) SUN RES on inner jacket and insulated conductor available upon request, Direct Burial

Data sheets

AWG size		Isulation Thickness	Approximate Diameter	Net Weight
No./cond	bond wire	mm.	mm.	KG/KM
4/14	14	0.76	13.3	203
3/14	14	0.76	12.5	170
2/14	14	0.76	12.0	145
4/12	14	0.76	14.3	260
3/12	14	0.76	13.4	215
2/12	14	0.76	12.8	176
4/10	12	0.76	15.6	355
3/10	12	0.76	14.6	290
2/10	12	0.76	13.9	233
3/8	10	1.14	19.1	505
3/6	8	1.14	21.3	705
3/4	8	1.14	24.1	965
3/3	6	1.14	25.4	1195
3/2	6	1.14	26.9	1410

Details show
Company information
HeBei huatong wires&cables Group Co.,ltd.
which founded in1993,covers 15,000 square meters.With 400 sets of manufacturing machines and 200 pieces of equipment available for testing and inspecting,the company's annual mannufacturi-ng capacity has reached 800 minllion US dollars.
The enterprise has adapted international a-dvanced mannagement standards by fully implementing the accreditation of ISO9001Quality con-trol system, ISO1004 Envrionment management system,and OHSAS18001 Occupational health and safety management system.
Huatong's products which consist of 15 series of cables and tens of thousands of specifications are widely used in different key national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US,Netherlands, Italy,Russia,UK,Australia,Ethiopia,Ghaha,congo,Middle East ,and Southeast Asia.

---
