200 Degree Electric High Temperature Industrial Nitrogen Oven

Product Description

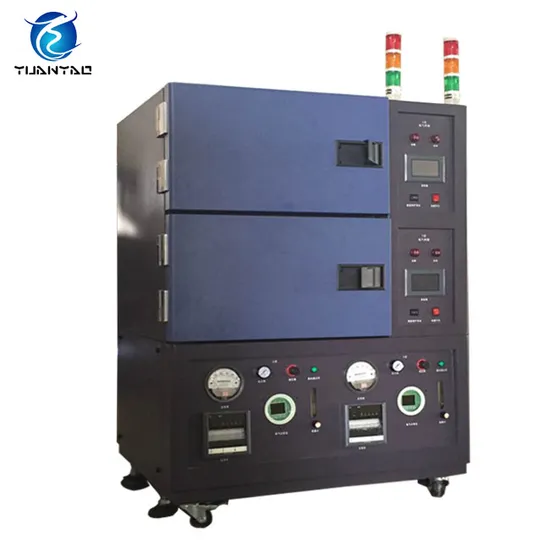

200 degree electric high temperature industrial nitrogen oven
Product description
Nitrogen oven can provide a stable test space for pre-heating, drying, aging test. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution High Temperature Industrial Heating Oven can provide a stable testing space and environment for pre-heating, drying, changes about physics and chemistry testing. It's precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Advantage 1) Adopts microcomputer electronic data control, precise and reliable.
2) The insulation packing is mounded by silicone, highly temperature-enduring and anti-aging.
3)Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.
4) If need, we can add a glass view window for customer to observe the inner chamber.
Advanced Microprocessor PID Controls
1) Bright LED display of actual and setpoint temperatures
2) Built-in 12-hour mechanical timer along with user-adjustable safety thermostat allows for power cut-out in case of overtemperature
3) Highly responsive RTD sensor provides temperature sensitivity of ± 0.1° C or better
4) High efficiency insulation ensures uniformity ± 0.5° At 100° C
Specification

Model	YNO-072	YNO-270	YNO-480	YNO-600	YNO-720	YNO-1000
Inner chamber size W×H×D(cm)	40×45×40	60×90×50	80×100×50	100×100×60	100×120×60	100×100×100
External chamber size W×H×D(cm)	72×116×56	93×163×67	110×172×77	130×172×77	116×170×116	116×150×166
Temperture. range	Room Temperture+25ºC~200ºC(300ºC)
Temperture.fluctuation	±0.3ºC
Temperture.uniformity	±1%ºC
Temperture.Resolution	0.1ºC
Oxygen concentration	0-2000PPM
Heating up time	30min
External chamber material	Cold rolled sheet+power coating
Internal chamber material	SUS#201 Stainless steel plate(Adopt SUS#304 stainless steel when temperature>200ºC)
Insulation	Fiberglass wool
Wind Circulation system	Centrifugal fan air circulation system
Heating system	SUS#Stainless steel high-speed heater
Controlling system	Button type digital display controller
Nitrogen system	Flow meter + Pressure meter (oxygen analyser is optional)
Other components	Control status indicator light, shelf(2pcs, height adjustable)
Safe device	Phase sequence protection,over temperature protection,overload protection
Power supply	AC 3ψ 380V 60/50Hz
Customization service	No-standard or special requirements are all welcome

Product detail
Company profile
If you want to know more about nitrogen oven,please feel free to contact us. Welcome to inquiry ,and thank you for your reading !

---
