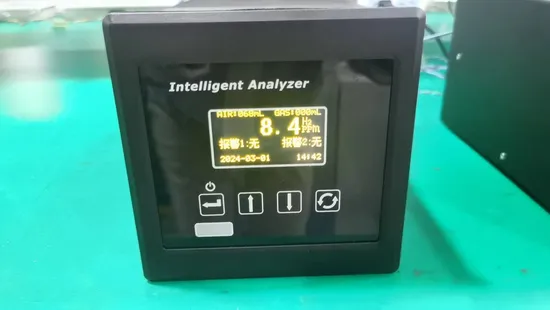

Advanced Percent H2 Analyzer for Accurate Hydrogen Measurement

Product Description

Features * Latest trace hydrogen tester * Big LCD screen, concise menu * Connecting to the printer to print the hydrogen concentration in a certain terminal * Automatic data storage in a certain interval time, and browsing data at any time * It can achieve two-way communication by connected to a computer via the standard RS232 interface. * Setting upper and lower alarm values freely during the measure ranges. * Calibrating by standard gas * 0-10mA or 4-20mA electrical current output Applications To measure the percent hydrogen concentration in the fields of nitrogen separation from air, chemical process, magnetic materials such as high temperature sintering furnace gas protection, various mixed gases, and so on.
Technical Specifications Measure Range: 0-5%, 0-10%,0-20%, 0-30% H2 Accuracy: ±2% in FS range Repeatability: ±0.5% Response Time: 90% of FS reading ≤30 seconds Contact Capacity: 250VAC/1A Signal Output: 4-20mA DC or 0-10mA DC Power Supply: 220±10% VAC, 50Hz, power loss≤15VA Working Temp.: -10ºC~+60ºC Sample Gas Flow: 200~400ml/min Sample Gas Pressure: 0.05MPa ≤Inlet pressure≤0.2Mpa Warranty: 12 months analyzer; 12 months sensor Installation Dimension: 133mm×133mm×250mm (W×H×D) Weight: 2.5kg

---
