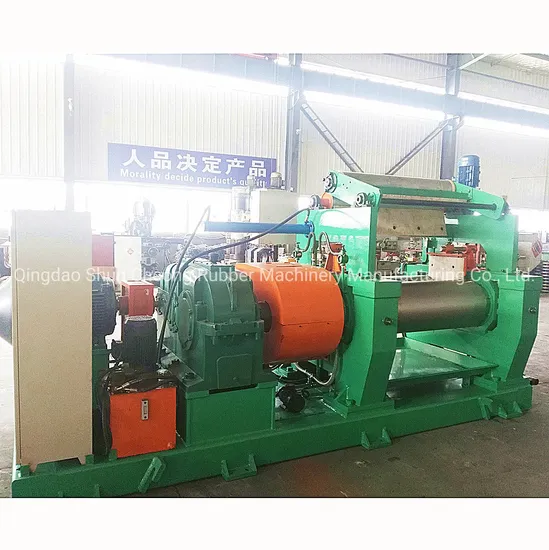

New Technical Rubber Mixing Mill

Product Description

Rubber Mixing Mill, Mixing Mill, Open Mixing Mill, Two Roll Mill Product introductionConstruction
This machine consists of Base, Rack, Gland, Rollers, Bearing, Transmission device, Lubrication device, Decelerator, Adjustment device of the roller temperature, Emergency shutdown device and brake rigging and etc.
Uses
It is mainly used for plasticating and mixing of rubber or plasticiser, warming and sheeting rubber compound, cracking and refining of reclaimed rubber.
Features
1. Two rollers are made from Chilled Cast Iron, smooth surface is highly polished and scratch proof by cutting knife: High hardness(68-75HSD) and wear-resistant.
2. The roller is hollow structure, which is for adjusting the temperature of the rollers by steam or cooling water in term of different request, Circulation of steam and cooling water is provided through the rolls to control the temperature.
3. There are three kinds of Main bearings for option: Bearing or Copper bush or Nylon bush.
4. Machine will be tripped off if overloaded to protect valuable electrical circuit.
5. All electrical connections are well, short circuits is impossible by any means.
6. It can be with Stock Blender, or can provide provision to fit stock blender in future.
7. Provision for opening of Nip Guard is provided for the purpose of cleaning of rollers and nip.

Item		XK-160	XK-230	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560	XK-550B	XK-660
Working Diameter of rolls (mm)		160	230	250	300	360	400	450	560/510	550	660
Working Length of Rolls (mm)		320	600	620	750	900	1000	1200	1530	1500	2130
Front Roll Surface Speed (m/min)		8.95	10.21	14.1	15.1	16.25	18.65	24.26	27.72	27.94	28.6
Friction Ratio		1:1.35	1:1.19	1:1.17	1:1.25	1:1.25	1:1.27 1:1.27	1:1.2	1:1.22	1:1.24	1:1.09
Max. nip (mm)		4.5	7	8	10	10	10	15	15	15	15
Capacity per Batch(kg)		1-2	6-10	8~15	15~20	20~25	18-35	25-50	35~50	50~60	165
Motor Power (kw)		5.5	15	18.5	22	30	37	55	90	110	245
Dimensions (mm)	L	1380	2800	3400	3400	3780	4350	5200	5845	5870	7465
	W	860	1200	1500	1500	1850	1850	2380	2284	2475	3662
	H	1320	1120	1500	1550	1750	1785	1840	1978	2045	2080

Company Profile Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, Huangdao New District,Qingdao City.Who is a specializing in the production of rubber machinery of high and new technology backbone enterprises, the company passed the ISO9001:2015 quality management system certification, the European Union CE certification and Switzerland SGS certification.

Company's products mainly cover the following industry: tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.

The main equipment are: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer,etc.

Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine,Uzbekistan, Kazakhstan and so on,more than 50 countries and regions, has won the domestic and foreign customers praise and cooperation for years.Meanwhile,they also introduced new customers to cooperate.

Product quality and after-sales service is the key to survival of Qingdao Shun Cheong Machinery Co.,Ltd, and also are top priorities of management of the company, the company commitment to all customers as follows:

1. Every parts pass strict quality inspection before storage.

2. All the products overload trial running before shipment, such as Plate Vulcanizing Press,to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.

3. The whole body of all products are with free technical support.

4. The warranty period of 3 years for main parts, wearing parts for 1 year warranty.

5. The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.
Certifications

Our Service

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong Airport. We will pick up you at the airport.

---
