Hot Sale CNC Turning Lathe with Hydraulic Chuck

Product Description

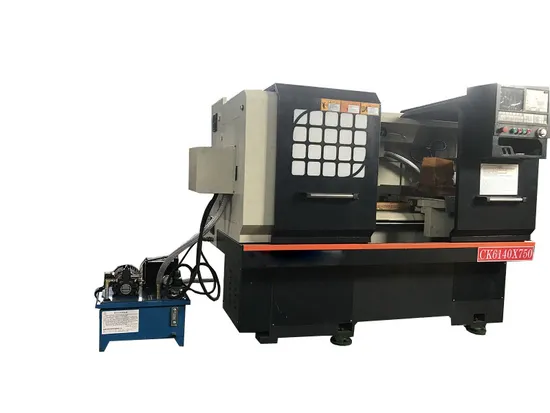

Picture:
CNC Lathe Application
cnc horizontal lathe turning machines price used in electrical appliances, instrumentation equipment industry, automobile, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware watches and clocks, glasses, cultural and educational supplies, electrical machinery, valves, gas pipe fittings and other high-precision complex parts manufacturing , Is the hardware and mechanical processing industry the most efficient and efficient equipment.
CNC Lathe Features
1. Variable frequency stepless speed regulation
2. Servo system
3. Four-position electric tool holder

Model	CK6140
Max swing over bed	400mm
Max swing over cross slide	180mm
Max processing lenght	750/1000/1500mm
X/Z axis travel	X:240 Z:750/1000/1500
Spindle transmission type	Mechanical two gear speed
Spindle speed step	In gear variable speed
Spindle speed	L :70-560 H:200-1600
Spindle nose	C6
Spindle bore	52mm
Spindle taper	MT6
Spindle motor	5.5kw
Chuck size	200mm
Ball screw dia and pitch	2506/4008
X/Z axis feed motor torque	X:4Nm Z:6Nm
X/Z rapid traverse	X:6mm/min Z:8mm/min
X/Z axis repeatabilty	+/-0.005mm
Processing accuracy	IT6-IT7
Workpiece surface roughness	Ral.6
Tailstock quill dia	65mm
Quill travel	140mm
Quill taper	MT4
Tool post type	4-position electric turret
Cutting tool size	20x20mm
Guide form	One shan one flat
Total power capacity	10KVA
Machine dimension	2500x1500x1650mm
N weight	1800kg

CNC Lathe Details
Customer test machine
Package & Delivery
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Woda Heavy Machinery Co.,Ltd focused on professinal production radial drilling machines, hydraulic press machines and cnc lathe for up to 20 years, is China's mature brand. We "quality of survival" management philosophy, has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.

Q:How about the service?
A: Shandong Woda Heavy Machinery Co.,Ltd is always provide good service, pre-sale--->in sale-->after sale.
Pre-sale: We have professional sales staff who are familiar with the products and are ready to solve problems for you.
In sale: We have a professional technical team with sales staff to provide you with solutions in real time.
After sale: At present, there is no after-sales problem. Once we encounter after-sales problems, we will promptly solve the problem for our customers. If necessary, we can send people to the past.

Q:Where is your manufactory in China ?
A:Shandong Woda Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China.
Convenient transportation, welcome to your visit.
If have any questions pls feel free to contact me via mobile for convenient +8613346326288

---
