Bed-Type Drilling and Milling Machine (Bed type Drilling Machine ZX7150A)

Product Description

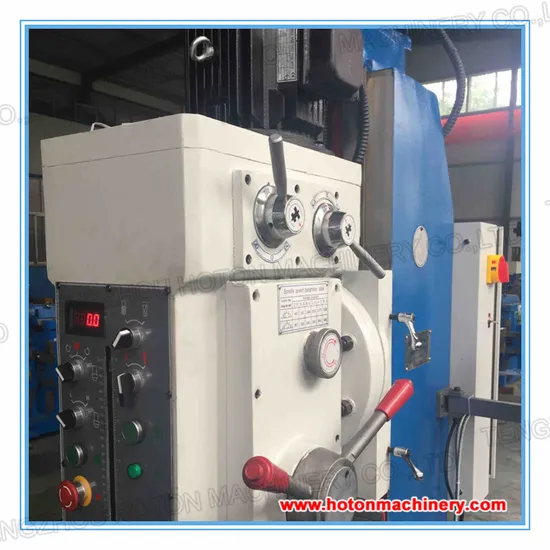

VERTICAL DRILLING AND MILLING MACHINE:
1: Spindle electromagnetic clutch feed, and digital drilling depth
2: Increase travel, span, the work surface
3: Enhanced spindle knife device can be configured to unload
4: Configure the table X to stepless feed, optional X, Y, Z coordinate digital
5: The guide surface and the main transmission parts centralized lubrication
6: Spindle box can be plus or minus 45 degrees rotation
7: Headstock Electric lift
8: Cooling and protective devices
9: The electrical control cabinet with PIC main electrical components imported component
WITH STANDARD ACCESSORIES:
Drill chuck, Reduction sleeve, Draw bar, some tools
Optional accessories:
Stand base-
Auto power feed
Machine vice
Collets chuck
Work lamp
Coolant system
2 Axis Digital Read out
SPECIFICATIONS:

MODEL	ZX7150A
Tapping the largest diameter	45mm
Maximum drilling diameter	50mm
Maximum milling diameter	125mm
Distance of spindle center to column	360mm
Spindle nose to table distance	Minimum 180mm maximum600mm
Spindle travel	200mm
Spindle taper hole	MT4
Spindle box lift travel	420mm
Vertical speed of the spindle box	1250mm/min
Maximum turning angle of the spindle box	Plus or minus 45 degrees
Spindle drilling speed range	38-1730r/min
Number of spindle speeds	12
Spindle automatic feed rate	0.1,0.2,0.3mm/r
Spindle automatic feed to the series	3 Level
Scale loop per revolution feed	102mm
Workbench X to the feed series	Stepless
Workbench X to the feed range	4-480mm/min
Workbench X to the fast-moving speed	640mm/min
Table area	350*1000mm
Workbench X / Y to travel	500*350mm
T-slot table size	3-14*100mm
Power of main motor	2.2,2.8 KW (double speed)
Motor power of the price rise	0.75kw
Cooling pump motor power	0.09kw
Workbench tool path parameters	220v,20nm
Weight of machine	1300kg
Maximum outline size of the machine	1550*1580*2210mm

Contact Us:

Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
