Fuel Saving Hho Hydrogen Gas Generator for Natural Gas Fired Boiler Combustion Burner

Product Description

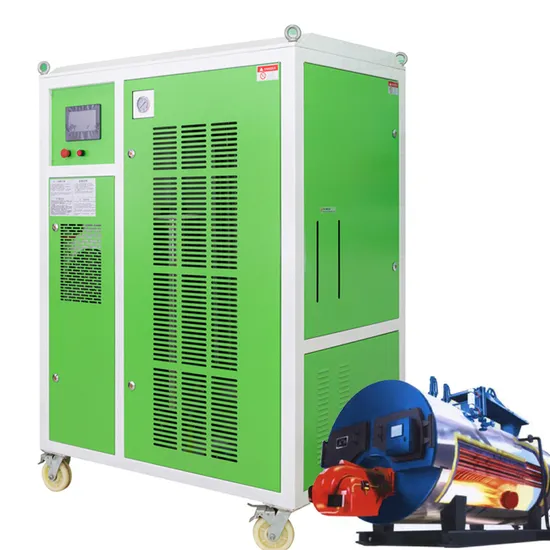

Fuel Saving Device HHO Hydrogen Gas Generator For Natural Gas Fired Boiler Combustion Burner
Technical Parameter

Model Number	OH3000	OH5500	OH7500	OH10000	OH20000
AC Voltage Requirement(V), Phase	380, three phase	380,three phase	380,three phase	380,three phase	380,three phase
Gas Output(L)	0-3000	0-5500	0-7500	0-10000	0-20000
Max Working Pressure(MPa)	0.2	0.2	0.2	0.2	0.2
Max Water Consumption(L/H)	1.8	2.8	4	5.6	11.6
Water Feed	auto	auto	auto	auto	auto
Dimensions - L*W*H (mm)	1300*800*1300	1500*800*1450	1650*800*1500	1520*900*1490	2300*1100*1800
Gross Weight (kg)	330	396	552	610	1140
Ventilation Space Requirement (mm)	400 in each direction	400 in each direction	400 in each direction	400 in each direction	400 in each direction

Why we used oxy-hydrogen generator?
1. Energy Saving more than 30% compared with trational acetylene flame.
2. Without any pollution.
3. The cost of electricity and water reduces more than 40% compared with acetylene flame.
4. Unique design of flashback arrestor, electrolysis trough and circulatory cooling system make the machine safe and reliable, stable performance.
5. Excellent welding and cutting quality.
6. All controls can be done just by one knob.
7. Except for flame welding and cutting, other welding and cutting funtions can be added according to customers require, this function en-strong the machines adsptability.
8. Portable, flexible and movable.
Multi-functions Applications:
1. Cutting metals by oxyhydrogen flame
2. Gas welding and flame spray painting
3. Thermal processing of jewelry, especially good for platinum as oxy-hydrogen flame contains no carbon
4. Fine cutting, fusion, repair and local thermal processing of delicate metal parts.
5. electric motors copper wire and enameled wire brazing
6. Be applicable to continuous casting templet in the steel factory
7. Removals of carbon deposit in the combustion chamber of internal combustion engine such as cars engine carbon cleaning
8. LED chip integration
9. The thermal processing of glass and quartz glass/ampoule sealing
10. Surface polishing of organic glass/acrylic flame polishing
11. Computer wire peeling
12. Burn with other fuels together for boilers, cooking stoves, melting metals.
Company Introduction
Okay Energy Equipment Co., Ltd which is the biggest supplier of oxyhydrogen generator in China,we have researched and produced
hho generator for more than 16years. During these years,it has been perfected continuously and has been mature now.
We have authorized CE , ISO9001 certificate and many of own patents successfully.

---
