Mini Mobile Jaw Crusher Plant for Lithium/Dolomite/Granite/Iron Oxide Yellow/Kaolin

Product Description

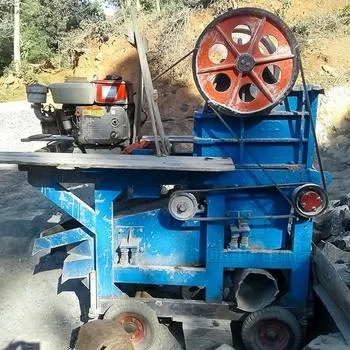

Mobile Jaw Crusher
Tire-type mobile crushing station is a new generation of our company's crushing and screening equipment, which results in a higher efficient of coarse crushing and mid-fine crushing works. With configured rugged removable frame, the station can easily enter the job site, saving a lot of material transport cost and production cost for customers. Tire-type mobile crushing station is mainly used for hard rock crushing, aggregate production, open quarry and mining, construction waste recycling, cement production and tunnel slag crushing and screening.our brand mobile crushing station can be tailor-made with free combination based on customer requirements
[Input size]<200mm [Output size]10-50mm [Capacity]1-20t/h
Features
1) The equipment has a thick steel frame, and the steel is a well-known trademark in China.
2) Tires: Forklift tires. Suitable for uneven roads.
3) The vibrating screen is equipped with a special outlet.
4) There are 3 screen layers, the screening efficiency is high and it is not easy to block.
5) The overall steel frame of the mobile station is widened, which can keep stable during the movement.
Work Principle
The working principle of jaw crusher is very simple.
The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, jaw crusher is easy to maintain and repair. These features promote its popularity to a great extant.
Product Parameters

Model	Feeding opening size(mm)	Max.Feeding(mm)	Adjustment range of discharging opening(mm)	Capacity(t/h)	Power(kw)	Overall drmension(mm)	Weight(t)
PE150x250	150x250	125	10-40	1-3	5.5	896x745x935	0.8
PE200x350	200x350	180	15-50	1-6	11	996x800x760	1.2
PE250x400	250x400	200	20-50	5-20	15	1430x1310x1340	3

Customer site
Company Profile
Cretificate
Packaging &services
The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely.
Standard parts are packed in the wooden boxes, and the big parts are packed with plastic membrane.The whole machine is loaded in the container
Our services
Pre-sale support of China Manufacturer mobile Jaw Crusher
We can enable them to get rich and generous returns on their investments:
1 select equipment model;
2 design and manufacture products according to clients' special requirement;
3 train technical personnel for clients.

Services during the sale China Manufacturer mobile Jaw Crusher
We respect clients and always devote ourselves to improving the total value of clients:
1 pre-check and accept products ahead of delivery;
2 help clients to draft solving plans.

After-sales service support China Manufacturer mobile Jaw Crusher stone
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.

Technological support China Manufacturer mobile Jaw Crusher
Dman insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Sbm is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation.
Our professional engineers will design the most reasonable scheme for the real production line.
contact us
Please give us the following details about your needs,We will give you professional advice.1.raw materials2.feeding size3.discharge size4.capacity5.your email or your Whatsapp
