40-60tubes Top Quality Butterfly Type Color Steel Vacuum Tube Solar Collector

Product Description

Product Description
Vacuum Tube Solar Collectors( for Schools, Hospitals, Swimming Pool) key advantage
1. Certificate: CE, ISO9001: 2008, CCC, EN12975-1, 2, SRCC
2. Especially designed for large-scale hot water heating project, supplying hot water for dormitories, hotels, restaurants, schools, hospitals, factories, swimming pools.
2. All-glass vacuum tube, most economical and good performance.
3. Stainless steel shell and bracket make it a good resistance to acid rain and other erosions
4. Easy installation and connection and little maintenance needed
5. Warranty: 3 years for integrated system and 15 years for vacuum tubes.
Product Parameters
Specifications and details:

One Wing Solar Collector
Item No.	Solar Vacuum Tube		Collector Size	Package	Container Loading
	Tube Size/ mm	Tube Nos.	L*W (mm)	Volume/cbm	20GP	40HQ
ILVC-4715V18-CG	Φ47*1500	18	1720*1230	0.22	133	321
ILVC-4715V20-CG	Φ47*1500	20	1720*1480	0.24	121	293
ILVC-4715V25-CG	Φ47*1500	25	1720*1805	0.29	101	243
ILVC-4715V30-CG	Φ47*1500	30	1720*2130	0.35	83	201
ILVC-4715V36-CG	Φ47*1500	36	1720*2520	0.41	71	170
ILVC-5818V15-CG	Φ58*1800	15	2025*1225	0.27	108	261
ILVC-5818V20-CG	Φ58*1800	20	2025*1680	0.36	80	192
ILVC-5818V25-CG	Φ58*1800	25	2025*2055	0.43	68	164
ILVC-5818V30-CG	Φ58*1800	30	2025*2430	0.53	54	131
ILVC-5818V36-CG	Φ58*1800	36	2025*2880	0.61	47	114
1. Inner of manifold: Food-grade stainless steel SUS304-2B 0.4mm
2. Exterior Shell: Color steel / Aluzinc / Fluorocarbon plate 0.4mm
3. Insulation: High-density polyurethane integrated foam-forming layer 40-50mm
4. Manifold Inlet & Outlet: Food-grade stainless steel, 1 inch male threaded
5. Vacuum Tube: Borosilicate glass vacuum tube, Cu-SS-ALN/AIN coating
6. Bracket: Painted black galvanized angle steel
7. Accessories: Stainless fasteners, anti-aging silicon rubber seal & dustproof rubber seal
8. Collector Tilt Angle: 20°~90°(Vertical/ horizontal shift: -5°/-5°)
9. Hail Resistance: Φ25 mm (tilt angle≥40°)

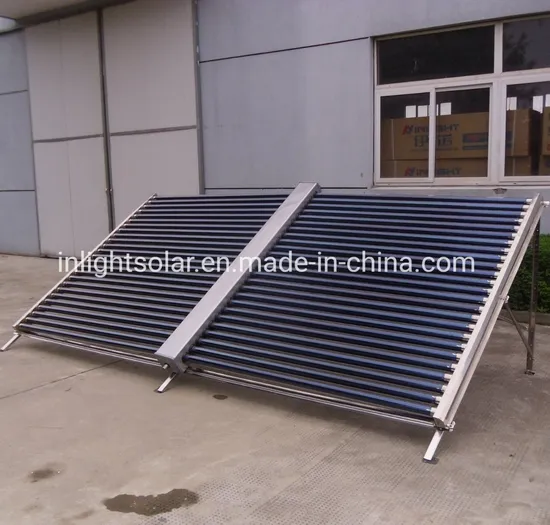

Butterfly Solar Collector
Item No.	Solar Vacuum Tube		Collector Size	Package	Container Loading
	Tube Size/ mm	Tube Nos.	L*W (mm)	Volume/cbm	20GP	40HQ
ILVC-4715V40-CA	Φ47*1500	40	3110*1480	0.37	78	189
ILVC-4715V50-CA	Φ47*1500	50	3110*1805	0.52	55	134
ILVC-4715V60-CA	Φ47*1500	60	3110*2130	0.63	46	111
ILVC-5818V40-CA	Φ58*1800	40	3710*1680	0.67	43	104
ILVC-5818V50-CA	Φ58*1800	50	3710*2055	0.80	36	87
ILVC-5818V60-CA	Φ58*1800	60	3710*2430	1.00	29	70
1. Inner of manifold: Food-grade stainless steel SUS304-2B 0.4mm
2. Exterior Shell: Color steel / Aluzinc / Fluorocarbon plate 0.4mm
3. Insulation: High-density polyurethane integrated foam-forming layer 40-50mm
4. Manifold Inlet & Outlet: Food-grade stainless steel, 1 inch male threaded
5. Vacuum Tube: Borosilicate glass vacuum tube, Cu-SS-ALN/AIN coating
6. Bracket: Painted black galvanized angle steel
7. Accessories: Stainless fasteners, anti-aging silicon rubber seal & dustproof rubber seal
8. Collector Tilt Angle: 20°~90°(Vertical/ horizontal shift: -5°/-5°)
9. Hail Resistance: Φ25 mm (tilt angle>40°)

Detailed Photos

---
