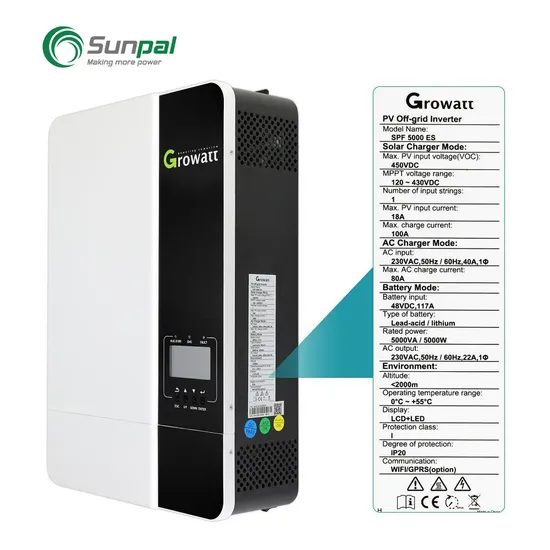

Growatt off Grid Solar Inverter 48V 5kw 4.5kw 5000W SPF 5000es Hibrid Solar Inverter EU Stock

US$445.00-590.00 1 Piece (MOQ)

Basic Info.

Model NO.
Growatt SPF 5000ES
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ROHS, ISO9001
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Rated Grid Voltage(V)
220V/230V /240V
Rated Grid Frequency(Hz)
50/60
Grid Frequency Range(Hz)
47-52 or 57-62
Operation Phase
Single
DC Reverse Polarity Protection
Yes
DC Switch Rating for Each MPPT
Yes
Output Over Current Protection
Yes
Parallel Capability
Yes, 6 Units Maximum
AC Voltage
230VAC ± 5% @ 50/60Hz
Surge Power
7000va/10000va
Efficiency (Peak)
93%
Transfer Time
10ms Typical, 20ms Max
AC Input Voltage
230 VAC
Frequency Range
50Hz/60Hz (Auto Sensing)
Mpp Trackers
1/1
Transport Package
Carton
Specification
355/419/158 mm
Trademark
Growatt
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Day

Packaging & Delivery

Package Size
36.00cm * 42.00cm * 16.00cm
Package Gross Weight
42.000kg

Product Description

Product Description
Datasheet Growatt SPF 3500 ES Growatt SPF 5000ES
Battery Voltage 48VDC
Battery Lithium/Lead-acid
Inverter Output
Rated Power 3500VA/ 3500W 5000VA/ 5000W
Parallel Capability Yes, 6 units maximum
AC Voltage 230VAC ± 5% @ 50/60Hz
Surge Power 7000VA 10000VA
Efficiency (Peak) 93%
Waveform Pure sine wave hybrid solar inverter
Transfer Time 10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power 4500W 6000W
MPPT Range 120VDC ~ 430VDC
MPP Trackers 1/1
Max PV Array Open V 450VDC
Max Solar Charge Current 80A 100A
AC CHARGER
Charge Current 60A 80A
AC Input Voltage 230 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
Smart Monitoring System
Product Packing
Project Installation
Our Advantages
Exhibition
Our Team
