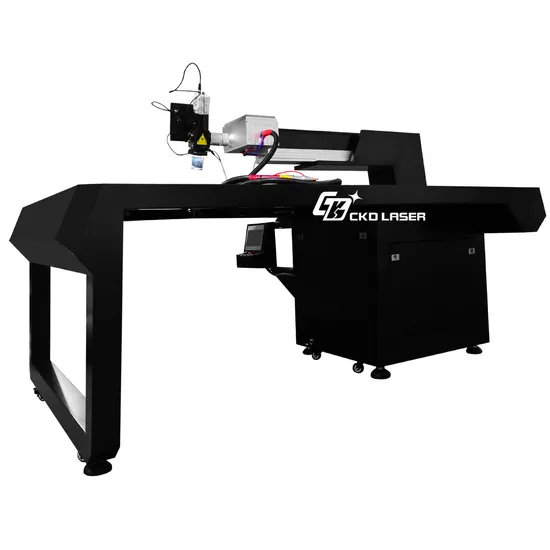

500W Mould Laser Welding Machine for Both Static and Handheld Moving Weld

Product Description

Product Description
CKD-WLM-500 V22.01 is 500W YAG laser welding machine for metal welding, usually used for advertisement model welding. It is water cooling, expanding the service life and keep stable working.
Our Advantages
* Both static welding and handle moving welding.
* With CCD observation system.
* Non-contact laser welding, high efficiency.
* Easy operation interface.
Product Parameters

Parameter	Unit	Data
Laser power	W	500W
The laser wavelength	nm	1064
Laser type		Nd: YAG Pulsed Xenon Lamp
Laser cavity		Metal
Work table	cm	125*195
Observation system		Red light + CCD
Beam diameter	mm	0.2 - 3
Pulse width	Hz	≤50Hz
Laser output focus length	mm	150-250
Cooling model		Water-cooling
Refrigerating capacity	KW	2.7
Electricity		220V 50Hz
Total power	KW	<7
Gross weight	Kg	350
Packing size	cm	167*129*116

Static welding:
Put the material in welding scope under the welding head, observing the welding track via CCD system, clean fast and accurate.
Handle welding:
Handle the welding head to move weld irregular materials, free the welding shapes, reach small corners.
Match air pipe beside the welding nozzle, keep air around the welding seam timely.
Light and small head, reduce the workload.
Welding sample show:
Notice: YAG laser cannot weld pure aluminum. Dioxide aluminum can be welded by YAG laser, but cannot keep seamless welding. If the users must weld aluminum with high standard, recommend our CKD-WFH-1000/1500/2000 V23.12 high power fiber laser welding machine.
CCD System:
The welded material can be enlarged on the displayer, user can track the welding timely, which mark sure the welding right and protect eyes.
Users can start the laser by press down the foot switch when using static welding model, free hands for other works.
Display data can microscope data can be adjusted according the use.
The controller is hidden under the work table, it can be drawn out and back any time.
The laser path location is adjustable, flexibly fit different application.
Thermostatic water chiller makes sure the welding machine stable and reliable. It automatically adjusts the water temperature, cool down water when high temperature, warm up water to avoid freeze.
Notice:
Other place can't have any water expect the water tank inside the water chiller.
The best working temperature is 25ºC in your work shop, avoid subzero temperature and high temperature above 40ºC.
Users can freely choose consumables, such as protective lens and welding nozzles. To minimize consumables' waste, please keep the working environment clean, especially keep clean around welding scope on the table.

---
