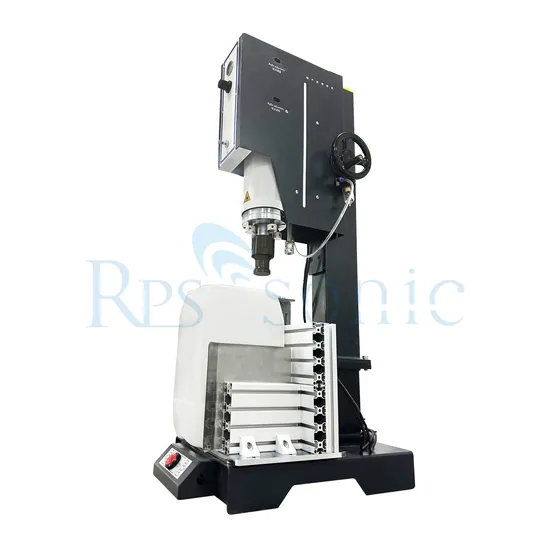

Factory Price Ultrasonic Welding Machine Ultrasonic Plastic Welder Welding Machinery Automatic Welding Machine

Product Description

factory price Ultrasonic Welding Machine ultrasonic Plastic Welder welding machinery automatic welding machine

Product Description
Ultrasonic plastic welding machine with modes of time model and energy model; it can automatically track and display real-time frequency, with amplitude stepping function, welding amplitude range up to 10-100 (1% accuracy). There is also amplitude compensation; welding quality management (time, energy mutual detection), including clear traceable welding records (operation statistics) to control your welding quality in real time. It also features transducer overload protection, mold impedance analysis and protection to protect your equipment. Powerful, high quality and high welding stability. It is your best choice for plastic welding.


Function
*Real-time frequency automatic tracking display;
* Welding mode: time, energy
*Amplitude stepping function;
*Welding amplitude 10-100 adjustable (1% accuracy)
*Amplitude compensation
*Mold impedance analysis + protection
*Overload protection;
*Quality management (time, energy mutual detection)
* welding record (operation statistics);
*powerful, high quality, high welding stability

Frequency	Power	Working distance	Input voltage	Air pressure	System language
15Khz	2500W/3000W/4000W	75mm/100mm	220V or 110v	0.2-0.8Mpa	English/Chinese
20Khz	2000W/3000W	75mm	220V or 110v	0.2-0.8Mpa	English/Chinese
30Khz	1000W	75mm	220V or 110v	0.2-0.8Mpa	English/Chinese
35Khz	1000W	75mm	220V or 110v	0.2-0.8Mpa	English/Chinese
40Khz	800W	75mm	220V or 110v	0.2-0.8Mpa	English/Chinese

Click here for more details!
Advantage * Good quality famous brand components are used to realize the strong power and stable performance.
* Compact design with small size, saving space.
* Low noise, low power consumption, environment friendly
* High efficiency with strong welding results. Application * Apparel:Clothing fabric, underwear spot welding, etc.
* Label: Logo, woven labels, marks welding or spot welding, etc.
* Shoe material: TPU vamp positioning spot welding, smoothen shoe head wrinkles, etc.
* Poultry: Chicken manure belt, egg conveyor belt welding, etc.
* Automobile: Automotive trim wrapping, trim riveting, steering wheel dustproof sleeve welding, etc.
* Electronic: Plastic parts, rubber column riveting, soundbox covering cloth welding, etc.
* Packaging: PVC spot welding, plastic box sealing welding, etc.
* Non-woven: Face mask, non-woven bag welding, etc.
* Ribbon: Ribbon, elastic belt welding
* Filter net or bag: Velcro welding, film welding, etc.
FAQ * Is ultrasonic welding a suitable method for sealing or joining packaging materials?
* Yes, ultrasonic welding is commonly used for sealing and joining packaging materials, such as blister packs, clamshell
packaging, and flexible pouches. It provides hermetic seals and helps maintain the integrity of the packaged contents.
* Can ultrasonic welding be used to weld dissimilar materials?
* It depends on the melting points of the different materials. If the melting points of the two materials are similar, of course, there is no problem. If the melting point of the two materials is very different, the welding effect will be not good
* Are there different types of ultrasonic welding equipment?
* Yes, there are different types of ultrasonic welding equipment available, including handheld units, benchtop machines, and fully automated systems. The choice of equipment depends on the specific application requirements and production volume.
* What factors should be considered when selecting an ultrasonic welding machine?
* When selecting an ultrasonic welding machine, consider key factors such as the material melting points and thickness, desired welding strength, required production speed, part complexity, and any specific features or customization needed for your
application.
* Is ultrasonic welding a safe process?
* Ultrasonic welding is generally considered safe when proper safety precautions are followed. Operators should use appropriate personal protective equipment, such as gloves and safety glasses, and ensure that the equipment is properly maintained and operated within specified parameters.

---
