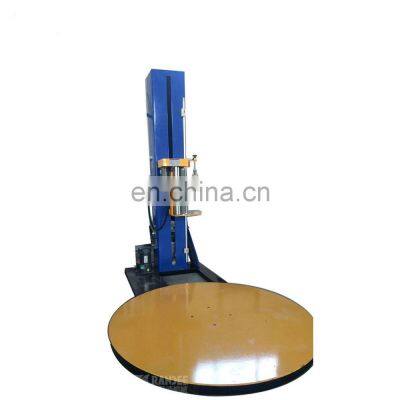

M shape pallet stretching wrapping machine / wrapper

Product Description

Product Description
M shape pallet stretching wrapping machine / wrapper
Product Description
1.Machine introduction
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances paper making foodstuff & drink etc.
2.Main technical parameter

Model	TP1650F-L
Wrapping size(L*W)	(500-1200)mm*(500-1200)mm
Packing height	L type:(500-2000)mm
	H type:(500-2400)mm
	Y type:(500-higher than 2400)mm
Packing efficiency	20-40 loads/hour
Turntable speed	0-12rpm
Turntable diameter	Diameter:1650mm height:85mm
Turntable loading(max)	2000kg
Up-down frame	Double-chain,Up-down speed variable
Film carriage	Pre-stretch
Control system	PLC
Machine weight(max)	700kg
Machine size	2650mm*1650mm*2400mm
Electrics	Single-phase 220V/50Hz
Power	Turntable:0.75kw,film carriage:0.3kw,up-down:0.4kw

3.Material usage:
Machine is using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof cover over the loads. The film is recyclable.
Specification: width:500mm, thickness:20-25microns, length:1500meters, weight:max:16kg
stretchable,one side sticky,transparent or colored.
4.Function of the machine:
1).Control System
PLC control
Photo-eye auto-height sensing pallet height
Separate top ,bottom & up-down Wrap Counter options
Overwrap time is up to create an overwrap
Reinforce wrap times is set to better secure 2 loads placed on top of each other
Film Tension Control adjustment on the panel
Separate start, pause and emergency stop buttons
Power indicator
Manual carriage up/down
Variable Turntable Speed
Carriage up/down speed control
Manual/automatic exchangeable
2).Turntable
1650mm Diameter Structural steel plate
85mm Height floor to top of turntable
3).Turntable drive
0-12rpm variable turntable speed by frequency changer
Position turntable alignment
Soft start
4).Film carriage
Powered pre-stretch system up to 250% to min film consumption
Film delivery variable speed by separate DC Drive Motor
Electronic film tension control adjustment on panel
Film dancer-bar with variable speed output
5).Film carriage Drive
Heavy duty double-chain carriage lift, calm and safety
Film carriage variable speed by frequency changer
Machine show
Load ramp
Wrapped products
Film show
