Heavy Duty CNC Milling Machine/Horizontal Machining Center Hmc100s

Product Description

Product Description

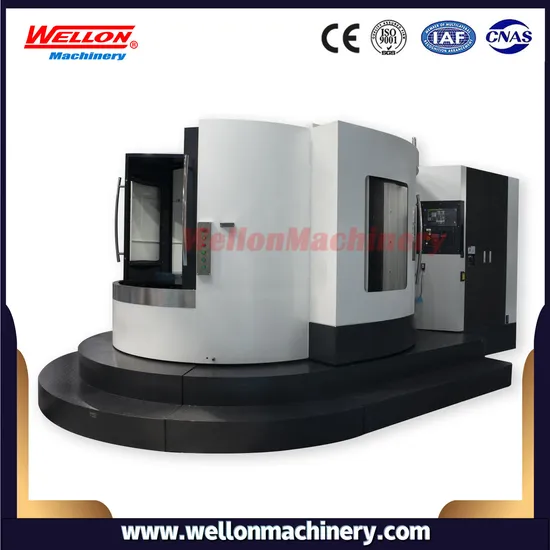

Heavy Duty CNC Milling Machine/Horizontal Machining Center

Hot Sale Products


Technical parameters:

	Specification	HMC100S	HMC100S/1	HMC100S/2	HMC100S/3
		Single table	Double table	Continuous indexing single table	Continuous indexing double table
Worktable	Worktable size	1000×1000mm	1000×1000mm	1000×1000mm	1000×1000mm
	Worktable number	1	2	1	2
	Worktable indexing	1°X360	1°X360	0.001°	0.001°
	Worktable transmission	200	200	180	180
	Worktable loading capacity	2000kg	2000kg	2000kg	2000kg
Travel	Worktable movement left and right(X Axis)	1300mm	1300mm	1300mm	1300mm
	Spindle head movement up and down(Y Axis)	1000mm	1000mm	1000mm	1000mm
	Column movement forward and backward(Z Axis)	1000mm	1000mm	1000mm	1000mm
	Distance from spindle center to worktable surface	100~1100mm	0~1000mm	100~1100mm	0~1000mm
	Distance from spindle nose to worktable center	200~1200mm	200~1200mm	200~1200mm	200~1200mm
Spindle	Max. Spindle speed	6000rpm	6000rpm	6000rpm	6000rpm
	Spindle taper	BT50-190	BT50-190	BT50-190	BT50-190
	ATC	24 (30/40)	24 (30/40)	24 (30/40)	24 (30/40)
Motor	Spindle motor	15kw	15kw	15kw	15kw
	X,Y,Z axis servo motor	30/30/30 Nm	30/30/30 Nm	30/30/30 Nm	30/30/30 Nm
	B axis servo motor	12N.m	12N.m	22N.m	22N.m
	APC servo motor	/	22N.m	/	22N.m
Leadscrew	X/Y/Z(Diameter×Pitch)	50×12	50×12	50×12	50×12
Rapid speed	X/Y/Z	24m/min	24m/min	24m/min	24m/min
	B axis	10r/min	10r/min	10r/min	10r/min
Positioning accuracy	X/Y/Z	0.012	0.012	0.012	0.012
	B axis	12″	12″	12″	12″
Repositioning accuracy	X/Y/Z	0.008	0.008	0.008	0.008
	B axis	6″	6″	6″	6″
Machine overall dimensions		3675×3180×3500	5580×3180×3500	3675×3180×3500	5580×3180×3500
Machine net weight		17000kg	20000kg	17000kg	20000kg

Standard accessories:
Fanuc 0i-MF controller
8000rpm belt type spindle from Taiwan
24 tool disc type magazine from Taiwan
Chain type chip conveyor*1+Screw type chip conveyor*2
Ball leadscrew from Taiwan Hiwin/PMI
3-axis Linear guideway from Taiwan Hiwin/PMI
Full closed covers
MPG
Air conditioner in cabinet
USB+ Ethernet Interface
Safety doors
High pressure flushing system
Work lamp +Tir-color alarm lamp
Air gun+water gun
Automatic lubricating
Coolant system
Nitrogen balance system
Tools and toolbox
Optional accessories:
Spindle oil cooling
Renishaw tool probe TS27R
Renishaw workpiece measurement device OMP60


Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
