Product Details
Product Description
Product Description

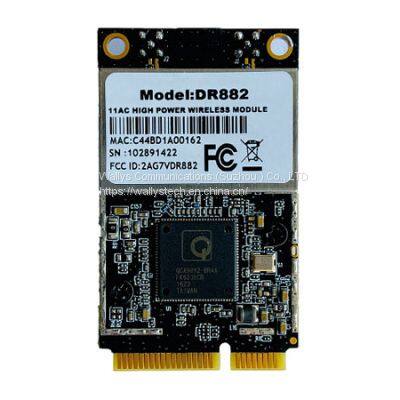

Wallys Quaclomm wifi QCA9882 802.11AC 802.11AN 2x 2 5G High power Radio card
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
SKYPE/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
Featuring with industrial-grade Atheros’s QCA9882 chipset
Integrated with 2x 2 5G high power Radio Card
4.940GHz to 5.825GHz Frequency Range
2 x 5G MMCX Connectors
20MHz/40MHz/80MHz Bandwidth
Support 802. 11AC/AN
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Parameter
| Rating
| Unit
|
Supply Voltage
| 3.3V(MINIPCIE)
| V
|
Operating Temperature Range
| -40 to +60
| ºC
|
Storage Temperature Range
| -65 to +105
| ºC
|
Operating Humidity Range
| 5 to +95 (non-condensing)
| %
|
Storage Humidity Range
| 0 to +90 (non-condensing)
| %
|
Symbol
| Parameter
|
CPU
| QCA9882
|
Antenna Connector
| 2 x 5G MMCX connectors
|
ROHS Compliance
| YES
|
Dimension
| 50mm x 30mm x 16mm
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
802.11a
| 6 Mbps
| 25dBm
| 28dbm
| ±2dB
|
54 Mbps
| 21dBm
| 24dbm
| ±2dB
|
802.11n HT20
| MCS0, MCS8
| 25dBm
| 28dbm
| ±2dB
|
MCS7, MCS15
| 20dBm
| 23dbm
| ±2dB
|
802.11n HT40
| MCS0, MCS8
| 25dBm
| 28dbm
| ±2dB
|
MCS7, MCS15
| 20dBm
| 23dbm
| ±2dB
|
802.11ac
| MCS0, MCS10,MCS20
| 25dBm
| 28dbm
| ±2dB
|
MCS9,MCS19,MCS29
| 17dBm
| 20dbm
| ±2dB
|
Operating Mode
| Data Rate
| Sensitivity
|
802.11a
| 6 Mbps
| -96dBm
|
54 Mbps
| -78dBm
|
802.11n HT20
| MCS0, MCS8
| -92dBm
|
MCS7, MCS15
| -73dBm
|
802.11n HT40
| MCS0, MCS8
| -90dBm
|
MCS7, MCS15
| -70dBm
|
WHAT WE'RE REALLY GOOD AT
We offer consultations in the field of IT - information and data networks - capacity, throughput, risk analysis, penetration tests, definition of security measures. We also supply wireless Wi-Fi data and 4G 5G LTE modules worldwide. There is no continent, where we would not have a satisfied customer! Yes, we have already supplied our Wi-Fi modules in Antarctica! You can find our modules, for example, in wind turbines, drones, ships, aircraft, both civil, acrobatic and military… on land, on water and in the air. NASA has also ordered samples, so the next goal is to get them into the outer Space!
>>
