Display Fully Auto Digital 10L-100L Vacuum Explosion Proof Rotavp Rotary Evaporator

Product Description

PTFE Sealed 10L-100L Explosion Proof Rotary Evaporator digital display auto lifting
Product Description Introduction:

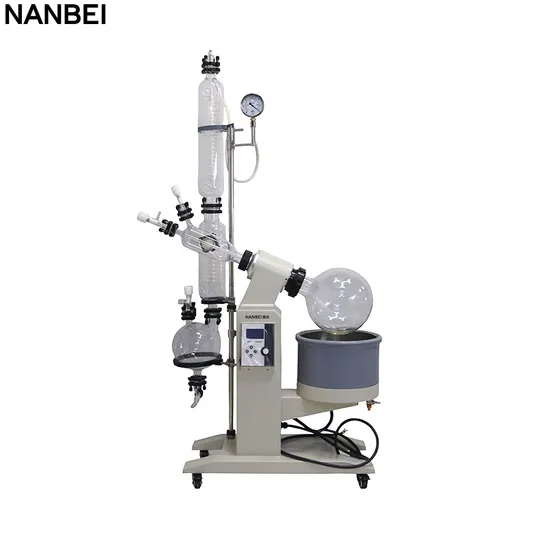

Rotary evaporator is a commonly used equipment in laboratories. It consists of a motor, distillation flask, heating pot, condenser, etc. It is mainly used for continuous distillation of volatile solvents under reduced pressure, and is used in chemistry and chemical engineering. , Biomedicine and other fields.
Detailed Photos
Feature and Description:
1. The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials.
2. All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion.
3. Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain
a high degree of vacuum.
4. Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics.
5. Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery.
6. Continuous feeding for customer's convenience, valve type feeding valve socket PTFE tube.
7. Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts.
8. Check valve control, continuous discharge, the machine in working condition, the vacuum switch.
9. All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient
Microprocessor-based power switch control.
10. LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature.
11. Brushless DC motor, stable rotation, no spark, slow down by force.
12. Bath electric lift, lift part of the deceleration by force motor, lifting process more stable.
13. The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature.
14. Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ºC, the machine will automatically power-off heating.
15. anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off.
16. If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.
Usage and Application:
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Product Parameters Technical data for rotary evaporator:

Model	NRE-1005	NRE-1000	NRE-1020	NRE-1050
power supply	220V/50HZ(various power supply and plug can be customized)	220V/50HZ(various power supply and plug can be customized)	220V/50HZ(various power supply and plug can be customized)	380V/50HZ (various power supply and plug can be customized)
Rotating motor power	40W	60W	60W	100W
Lifting motor power	30W	40W	40W	60W
Heating power	3kw	4.5kw	5KW	8kw
Rotating flask	5L	10L Flange mouth:Φ280mm/Φ95mm	20L Φ355mm/Φ95mm flange mouth	50LFlange mouthΦ470mm/Φ125mm
collecting flask	3L	5L Flange mouth:Φ230mm/Φ50mm	10L Φ280mm/Φ60mm flange mouth	20L Flange mouthΦ355mm/Φ60mm
Vacuum degree	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa
Rotary speed	0-120rpm/min	0-120rpm/min	0-120rpm/min	0-120rpm/min
Heating temp.	0-400C	0-400C	0-400ºC	0-400C
Glass temp range	-80C to 250C	-80C to 250C	-80-250ºC	-80C to 250C
Condenser size	Vertical double serpentine tube	MainΦ130*640H(mm) DeputyΦ130*410H(mm)	mainΦ130×680H(mm) deputyΦ130×410H(mm)	MainΦ160*840H(mm) DeputyΦ160*480H(mm)
Feed valve	Φ35 flange mouth	Φ35 flange mouth	Φ35 flange mouth	Φ35 flange mouth
Release valve	Φ35 flange mouth*2pcs	Φ35 flange mouth*2pcs	Φ35 flange mouth*2pcs	Φ35 flange mouth*2pcs
Lifting Distance	0~150mm	0-180mm	0-180(mm)	0-180mm
Temp controlling accuracy	±1C	±1C	±1C	±1C
Didcharge valve	15mm glass and lean discharge port	10mm glass and lean discharge port	¢10mm glass and lean discharge port	15mm glass and lean discharge port
Bath size/volume	Φ250*120H(mm)	Φ350*220H(mm) about 21L	Φ450×250H(mm) about39L	Φ550×320H(mm) about76L
dimension	700*335*1009	/	1200*500*2000(mm)	1400*600*2250(mm)
packing size	1040*620*410mm	1070*520*1210mm(L*W*H) about 0.67m3	1070L×520W×1210H(mm) about0.67m3	1270L×620W×1440H(mm) about1.133m3
gross weight	38kg	95kg	102KG	118KG

Related Products
Certifications Our company have the CE,ISO,SGS certifications.
Packaging & Shipping
Company Profile
FAQ FAQ:
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
Warranty : 1 year We supply free part for quality problem in warranty Long life technical support and service

---
