Product Description
Product Description

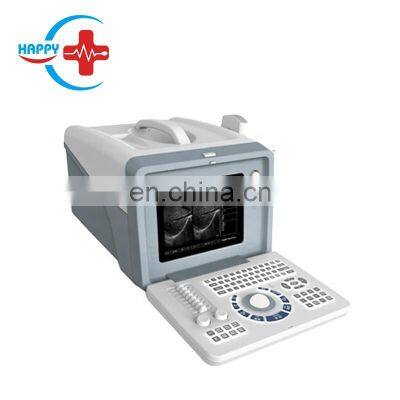

HC-A001 Portable full digital ultrasound machine scanner
Features for portable ultrasound machine:
Display modes:
3.5MHz/R60 convex array probe: B, B/B, 4B, B+M, M;
6.5MHz/R13 Dimpling array probe: B;
7.5MHz/L40 Line array probe: B.
Image multiplying factor:
3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes)
×0.8, ×2.0 (display penetration depth);
6.5MHz/R13 Dimpling array probe: ×0.8, ×1.0, ×1.2, × 1.5 (four modes);
7.5MHz/L40 Line array probe: ×0.8, ×1.0, ×1.2, × 1.5 (four modes).
E-zoom: magnify 2 times of real time image
Dynamic range: 0~120dB adjustable.
Focus position: 1, 2, 3 and 4-segments dynamic electron focusing.
Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe.
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, AC), expected date of confinement and fetus weight, etc.
Annotation function: hospital name, patient’s name, age and gender;
16 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, black and white flip, up and down flip.
Capacity cine loop: real time display 256 consecutive images which are memorized successively
Image playback: series playback or check one by one
Permanent storage: 127 image.
Output interface: SVGA video output offers connection to SVGA color display;
PAL video output offers connection to PAL display, video printer, video image recorder and image workstation, etc.
Display modes:
| 3.5MHz/R60 convex array probe: B, B/B, 4B, B+M, M;
6.5MHz/R13 Dimpling array probe: B;
7.5MHz/L40 Line array probe: B.
|
Image multiplying factor:
| 3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 (six modes)
×0.8, ×2.0 (display penetration depth);
6.5MHz/R13 Dimpling array probe: ×0.8, ×1.0, ×1.2, × 1.5 (four modes);
7.5MHz/L40 Line array probe: ×0.8, ×1.0, ×1.2, × 1.5 (four modes).
|
E-zoom:
| magnify 2 times of real time image
|
Dynamic range:
| 0~120dB adjustable.
|
Focus position:
| 1, 2, 3 and 4-segments dynamic electron focusing
|
Image processing:
| γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
|
Frequency conversion:
| 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe.
|
Measuring function:
| Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, AC), expected date of confinement and fetus weight, etc.
|
Annotation function:
| hospital name, patient’s name, age and gender;
16 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display;
|
Puncture guide:
| 3.5MHz convex array probe can display puncture guide line in B mode.
|
Gain control:
| 8 segments TGC and overall gain can be adjusted respectively.
|
Image polarity:
| left and right flip, black and white flip, up and down flip.
|
Capacity cine loop:
| real time display 256 consecutive images which are memorized successively
|
Image playback:
| series playback or check one by one
|
Permanent storage:
| 127 images
|
Output interface:
| SVGA video output offers connection to SVGA color
display; output offers connection to PAL display, video printer, video image recorder and image workstation, etc.
|
Pictures for portable ultrasound machine:
Production line and quality check:
Packaging & Shipping
Company Information
Clients and Projects
Our Services
Why choose us?
1. On time reply: For all your inquiry,we will try our best to reply within 24 hours.
2. Quality Assurance: Double quality check before shipping,if quailty problem we will give Compensation.
3. On time shipping: Your order will be shipped once finish quality checking.
4. On time aftersell service: Any after sell questions will be replied within 24 hours.
5. Reasonable price:We provide good quality product with best reasonable price.
FAQ
1. How to place order of portable ultrasound machine ?A: Firstly we confirm product details with you and then send you the Proforma Invoice for checking,
If everything is okay then you make payment to us through Alibaba Trade Assurance or T/T,
Western Union or MoneyGram,after we confirm your payment then we will start the production and ship the product to you at first time.
2. For portable ultrasound machine product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ quantity,but normally the sample is free,
For our portable ultrasound machine , our MOQ:1pc,
All clients are warmly welcomed to place order,if you have any product questions,
we will serve you anytime by Email or Trademanager.
3. What is your warranty?
A: For most of our products the warranty is for 12 months, some products we provide 18 months warranty.
For portable ultrasound machine , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if the goods are in stock. or it is 10 working days if the goods are not
in stock, And also the delivery time depands on quantity.
For portable ultrasound machine , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
6. What is your terms of payment ?
A: Payment terms:T/T,Western Union or MoneyGram or Alibaba trade Assurance.
By Alibaba trade Assurance will be better and most welcomed and we provide gifts.
>>
