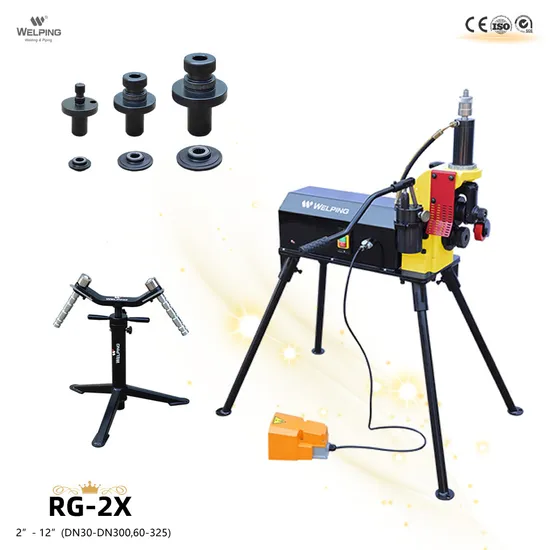

Heavy Duty Electric Hydraulic Roll Groover Machine for Steel Pipe Sch10/Sch40 2"-12" (RG-2X)

Product Description

Product Features
Features of Electric Hydraulic Roll Groover Machine
*Model RG-2X is specifically designed for rolling grooves on steel pipes and stainless steel on steel pipes and stainless steel from 2"-12" SCH10/SCH40.
*Ideal for a variety of daily tasks associated with fire-fighting pipe installation and maintenance, this roll groover is a flexible and efficient tool. Complete with a powerful motor, hydraulic feeding pump, convenient foot switch, and sturdy pipe stand, this tool is designed to handle a wide range of grooving needs with ease and precision.
*The motor's integrated high-efficiency gear reduction system enables a sleeker, more streamlined design and reduced noise emissions.
*The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
*The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
Product Parameters

Model:	RG-2X
Suitable materials:	Carbon Steel,SS Pipe
Fabrication Capacity:	2"-12" Pipe SCH10/SCH40
Power supply:	220V/110V
Frequency:	50HZ /60HZ
Max wall thickness:	10mm
Motor power:	1100W
Output speed:	23RPM
Packing gross weight:	130kgs
Packing size:	82*47*88cm

Drive Unit

Item Number		Description			Net weight
911022		Drive roller 2"-3"(φ60-φ89)			1.30kg
911021		Drive roller 3 1/2"-6"(φ101-φ168)			1.30kg
911020		Drive roller 8"-12" (φ219-φ325)			1.40kg
912010		Groove roller 2"-3"(φ60-φ89)			0.45kg
912009		Groove roller 3 1/2"-6"(φ101-φ168)			0.45kg
912008		Groove roller 8"-12" (φ219-φ325)			0.45kg
998078		Pipe stand			6.90kg
998033		Pipe Stabilizer			2.80kg
998026		Foot Switch			1.50kg

Standard

Item Number		Description			Net weight
912040		Groove roller for SCH10 Anti-Flare (2"-3")			0.45kg
912039		Groove roller for SCH10 Anti-Flare (3 1/2"-6")			0.45kg
912038		Groove roller for SCH10 Anti-Flare (8"-12")			0.45kg

Detailed Images
Product Specification
Application
Product Packing
Company Profile
Certification
General Terms 1. PAYMENT
We accept a 30% TT deposit and a 70% balance payment against the photo before delivery or 100% TT in advance.
2. LEAD TIMEWELPING can finish in around 10-15 days for standard and light OEM items.
3. WARRANTY
18 Months from delivery we take full responsebilityfor for parts with quality problems and provide them for free requirements
4. CUSTOMIZED DESIGN
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. ABOUT AGENCY BUSINESS Welcome customers with sincerity and influence to discuss cooperation matters with us.

---
