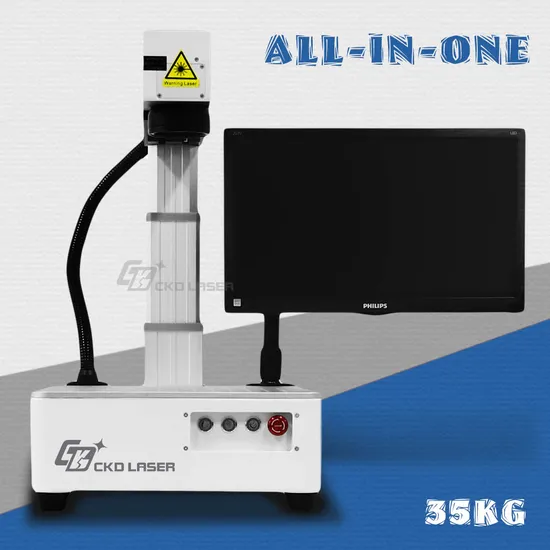

Rotary Metal Name Plate Machinery for Yeti Cup Bottle Ring by Laser Marking

Product Description

True problem solver: CKD-PLMN-20/30/50/60, V20.02, Electric focus
FEATURES:
* E-focus
* No useless volume
* Small body big scope as large machine
* Accurate laser path
* Support self-repair
* Alarm function
* Configuration can be optional: color marking or not, rotary marking or not, hand focus or e-focus, alarm function or not
APPLICATION MATERIAL
All metal: stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.
Some non-metal: ABS, PVC, acrylic (non-transparent), ceramic, EP, HDPE, PC, plastic alloy, ink and paint face, etc.
APPLICATION FIELD
Electronic products, daily necessities, packaging, gift, craft, auto parts, digital products, communication goods, building materials, electrical appliances, kitchenware, jewelry, sanitary ware, medical apparatus, advertising making, photovoltaic product, commodity, hardware, and so on.
ORIGINAL DESIGN, PATENT PROTECTION
* Very portable, all-in-one, don't need to install or calibrate when receiving, you can use it directly.
* It features an electric-focusing function, which is more accurate and faster than focusing by hand, and more practical than expensive dynamic focusing.
* By lowering weight and cutting down on unnecessary volume, it allows the critical area to have more room for big material marking.
Unlimited size of material to mark after changing marking direction. Accurate digital optical path,arbitrary turning, does not affect the accuracy.
CONFIGURATION
Configuration of CKD-PLMN V20.02

Model	Laser source	Marking scope	Computer	Focus way
CKD-PLMN-20	20W Q-switched	100*100/150*150mm	With computer and marking software of EzCad2	Electric wheel + double red lights
	20W MOPA	100*100/150*150mm
CKD-PLMN-30	30W Q-switched	100*100/150*150/200*200mm
	30W MOPA	100*100/150*150/200*200mm
CKD-PLMN-50	50W Q-switched	100*100/150*150/200*200mm
CKD-PLMN-60	60W MOPA	100*100/150*150/200*200mm

Remark:
52*65*50cm dimension and 40kg packed by carton,
50*63*58cm dimension and 60kg packed by wood box.

	Name	Remark
Standard accessory	Foot-switch	For start the laser
	Marking software	Control the machine
Optional accessary (not included in the price of machine)	Position bars	Recommend 2 bars at least
	Rotary	Can choice chuck diameter of 50/80/100mm
	X-Y table	Can chose big or small one
	Cutting fixture	For using of 50W laser to cut metal sheet
	Protect goggle	Can choose 1064nm or multi-wavelengh
	One more lens	Suggest one more lens of different scope if you need big power machine
