Professional 435CNC Powerful Processing with Technology Automatically Generate Processing Parameters and Automatically CNC Hole Discharge Machine

Product Description

Product Description
1.Unigue independent intellectual property CNC system processing software, using the current mainstream Windows 7 operating
platform,industrial grade PC controller, supporting none.
2. Intelligent database management, equipped with a powerful processing technology database, input copper pipe diameter and
workpiece material, and automatically generate various processing parameters.
3. Without programming, directly read CAD files without the need for third-party software, automatically optimize and generate
machining trajectory paths, and provide multiple path direction choices.
4. Real time tracking of graphics, trajectories, and coordinates. Point graphics can read coordinate positions, and point coordinates
can be seen at specific positions in the graphics. Data can be read alternately at will.
5. There are no burrs on the surface of the workpiece, and the intelligent processing current pulse energy increment function.
6.Infrared laser detection function.

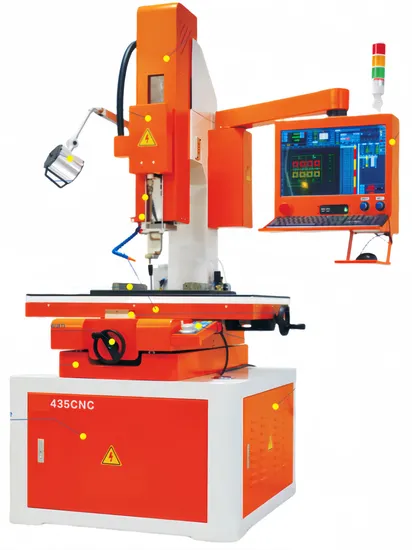

Detailed Photos
Product Parameters

Product Parameters				Random Accessories
Technical Parameter	435CNC	Machine Weight (KG)	660	Terminal Clamp	2 Sets
Workbench Stroke (MM)	450*350	External dimensions (CM)	120*110*210	Electrode guide nozzle (0.3/0.5/0.7)	one each
X - Stroke (MM)	450	Input Power (KAV)	380V 3KVA	Copper tube (0.3/0.5/0.7)	Each tube
Y - Stroke (MM)	350	Maximum processing current (A)	30	Blocklet	20
Z1 axis servo up and down stroke (MM)	430	Voltage setting (range)	3	Parallel block	2 pieces
Z2 axis auxiliary up and down travel (MM)	320	Discharge pulse width (segment)	0 - 99	Built-in flushing device	One set
Z3 axis guide nozzle shaft up and down stroke (MM)	/	Rest frequency (segment)	0 - 99	Sensor	A Set
Workbench sink area (MM)	945*550	Encoder	Wanhao	Allen Key	A Set
Maximum Machinable Workpiece (MM)	320	Operating system	Windows 7	One Word Cross	Each one
Machining hole range (MM)	0.15 - 3.0	Parameter reading method	Database	Bucket (18 liters)	2
Maximum working load (KG)	200
