Modular UPS China Supplier 10-300kVA 60 kVA UPS

Product Description

Key attributes Other attributes Warranty 3months-1year
Place of Origin Guangdong, China
Brand Name ENSURE
Model Number MPS9335C II
Phase Three Phase
Protection Unbalanced Loads
Weight 41.3KG
Type modular UPS
Application Networking
Name MPS9335C II
Capacity 50-720KVA
Packaging and delivery Packaging Details carton
Port Shenzhen
Supply Ability Supply Ability 5000 Piece/Pieces per Month Application IDC(Internet Data Center),computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Working principle Modular UPS uses double conversion online structure, including rectifier, inverter, charger, control circuit, input and output and battery linker, circuit breaker, input power factor compensation, etc. All modules can be hot swapped online, providing a high level of availability and maintainability. A control module failure will not affect the normal operation of the system. The control module can Online hot swap replacement. The parallel connection of power modules is also centrally managed by the control module acccording to the unified parallel parameters. The single one power module failure can be automatically withdrawn. The parallel system will not cause harm to the entire parallel. Modular UPS system uses independent static bypass module not adopt multiple static bypass circuit structure to avoid overload loss caused by uneven flow of multiple bypasses when switching to bypass mode. The output voltage accuracy of the module in parallel is ± 1%, and the parallel circulating current is <1%. The static bypass module contains only the bypass static switch, not includes the static output of the main circuit static switch. therefore, the replacement of the static bypass module will not cause the system power off or turn to manual maintenance bypass. The online hot-swap replacement also can be realized in battery mode.

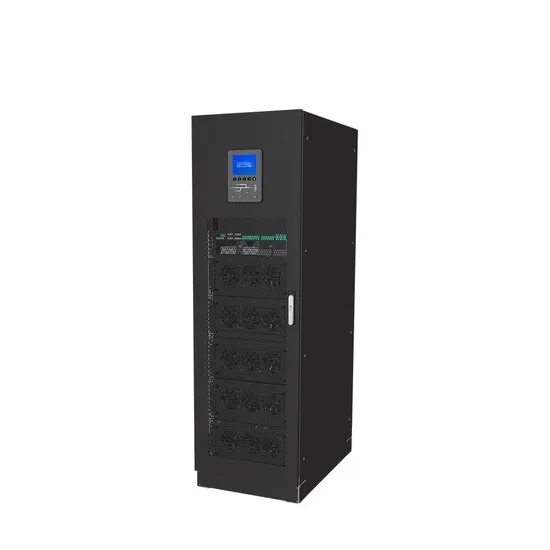

PRODUCT SHOW

Model	MPS9335C II 50-720KVA
Capacity	50-720KVA
Main Input
Input voltage	380V/400V/415VAC
Input Frequency Range	50/60Hz
Power Factor	>0.99
THDi	THDi<3%
Input power soft-start function	5-30S settable
Input Voltage Ranges	228V-476V;-20% ~ 25% at Full load ; linear derating at -25% ~ -40%; can take 70% load at -40%
Frequency Range	40-70Hz
Battery
Battery Voltage	±240VDC,12V Battery 32~44 pcs can be chose
Charge Voltage accuracy	±1%
Bypass
Bypass Input Voltage	380/400/415VAC 3-phase 4-wire
Voltage Range	Default value is -20%~+15%; -40%,-30%,-10% ~ +10%,+15%,other ranges can be set via software
Overload Capacity	Long term at 135% rated load,150%<load<180% more than 10 min,load> 1000% 100ms
Ouput
Inverter Output Voltage	380/400/415VAC 3-phase 4-wire
Voltage Accuracy	±0.5% (balanced load),±1% (unbalanced load)
THDV	THDV<1%(linear load), THDV<3%(nonlinear load)
Power Factor	1.0
Three Phase Angle accuracy	120°±0.5°
Current Crest Ratio	3:1
Overload Capacity	110%1h,125%10mins , 150%1mins,> 150%200ms
Transfer Time	<2ms
System
Frequency	50Hz/60Hz(Settable)
Mains synchronization range	±2Hz(Default value),adjustable with step of 0.5Hz within range of+/-0.5Hz-3Hz
Protection Level	IP20
Communication Ports	RS232.RS485,dry contact ,SNMP card,EPO,generator port
System efficiency	>97% at load above 50%,>95%at load above 25%,
Operation Temperature	0~40ºC
Storge Temperature	-25ºC~70ºC(without battery)
Humidity	0~95%(no-condensing)
Noise(dB)	55-62dB,Adjusted with load
Weight Dimension(WxDxH)mm	module:PM 50	50KVA power module :41.3KG
	module:PM60	60KVA power module:41.3KG
	3 module cabinet	600X1000X1400
	5 module cabinet	600X1000X2000
	8 module cabinet	1200X1000X2000
	12 module cabinet	1800X1000X2000
	power module	440X638X217-(50/60KVA)

---
