Titanium Carbide Cermet Round Rod for Hammer Drill Bit

Product Description

Titanium carbide cermet round rod for hammer drill bit
1. Product Introduction
The titanium carbide cermet rod(TiC rod) belongs to the steel-bonded cemented carbide, which is a kind of compound material based on the steel as the binder phase and used the refractory metal carbide(mainly the titanium carbide and the tungsten carbide) as the hard phase. The TiC rod is the high-hardness and high-strength titanium-based alloy composite material.

2. Product Physical and Mechanical Characteristics

Grade

Density (g/cm3)

Hardness(HRC)

TRS (Mpa)

Porosity

Abrasion test

Machining

Elastic modulus (×102kg/cm2)

Specific resistivity (Ωmm2/m)

Coercive force(HC)

Impact toughness (J/cm2)

Thermal expansion Coefficient(×10-6/ºC)

Annealing

Hardening

Annealing

Hardening

Annealing

Hardening

Temperature

a

GT35

6.42~6.55

≤48

≥68

≥1400

A04 B04

-

√

306

298

0.812

≥3.5

68

≥3.5

20~200 20~700

8.43 11.83

TM52

6.12~6.25

sintered state: HRC≥60

≥1500

A04 B04

7.2

×

-

-

-

-

-

-

20~200 20~700

9.16 11.13

3. Product Application

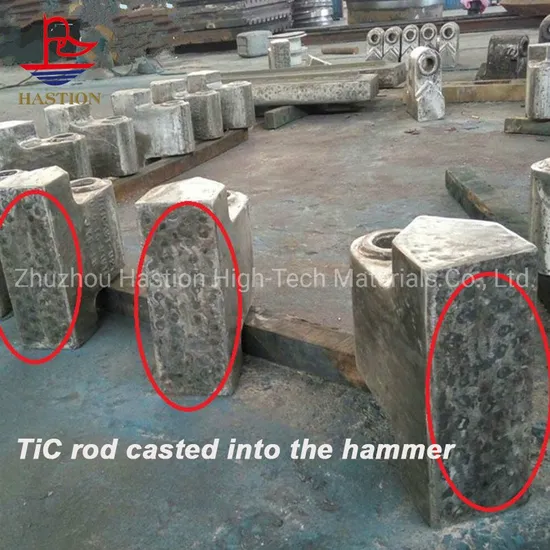

The TiC rod is mainly casted into the wear parts of crusher hammer, plate hammer, jaw plate, concave, mantle and crushing roller and so on so that the matrix of high manganese steel steel can be reduced effectively to increase the service life for hammer crushing equipment and saving the maintenance costs accordingly.
HOT SELLING Size: Φ8*60(L) Φ12*50(L);
Φ14*50(L) Φ14*60(L) Φ14*80(L)
Φ16*60(L) Φ16*90(L) ;

Economic Cost Advantage (Common hammer with high manganese steel VS TiC hammer with TiC rod)

1. HASTION Introduction
Zhuzhou Hastion High-tech Materials Co., Ltd.(short for HASTION) is located in Yanling Small and Medium Enterprise Pioneer Park in Zhuzhou City, Hunan Province, which is covering an area of 60,000 square meters and a planned factory area of 50,000 square meters. Now HASTION have 2 different productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/ZrC/HfC/(W,Ti)C/
(Ta,Nb)C and so on), the other one is the titanium carbide cermet rod/insert/plate/customized shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
2. HASTION Workshop
HASTION has passed the ISO9001:2008 international quality system authentication. we are well equipped with the high-level machines for production and inspection.until now HASTION has total over 600tons annual production capacity(TiC rod: 120-180tons; metal powder: 400-450tons), also our prodution scale is still increasing.
1. Package Details(Metal Powders and TiC Rod/Insert/Plate Products)
Samples: by vacuum plastic bag firstly, then Carton.
Productions: by steel drums, then packed by pallet.
2. Shipping Method
By international express(DHL,FEDEX,TNT or others) / by sea / by air
Q1. Are you factory or trading company ?
A: We are the largest manufacturer of TiC rod with 50000m2 factory in China, and the lowest competitive price for you as the mainly raw material of TiC rod(TiC powder) is produced by ourselves. Warmly welcome to visit our factory. CONTACT US NOW.
Q2. What's the MOQ ?
A: (1) NO MOQ if stock available.
(2) If no stock,different products different MOQ, and final quantity can be negotiated .
So email or call me what's the products you interested in ?

Q3. What is your principle for the samples ?
A: FREE SAMPLES(<1kg) for you if you are willing to pay the shipping cost.
Q4. Which payment can be acceptable ?
A: By T/T, L/C, Western Union, Paypal and so on.
Q5. How about your delivery time?
A: Normally it's 7-15days after receipt of deposit. Large quantity needs to be negotiated.

---
