Automatic Waste Tire Recycling Machine Scrap Rubber Tire Strip & Block Cutter

Product Description

Automatic Waste Tire Recycling Machine Scrap Rubber Tire Strip & Block Cutter
Product Description

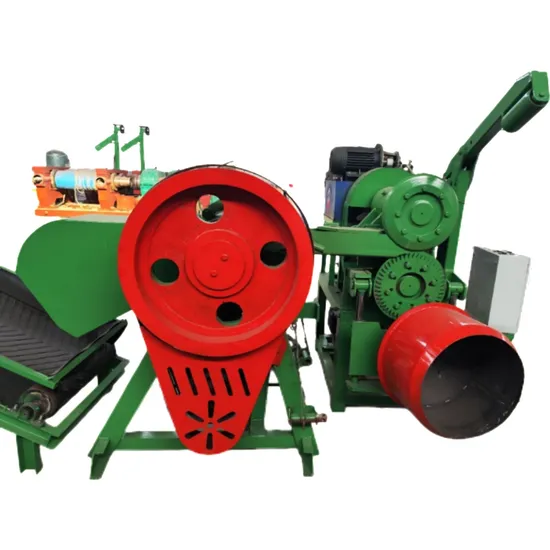

1. Automatic Tire Cutting Machine

1.Type	TP-600
2.Strip cutter reducer model	350
3.Total motor power	11+3 +30 +1.5 Kw
4.Output conveying device ( L*W)	0.6m*4m
5. Conveyor belt materials	Rubber & Nylon
6. Drums number & size	16 Inches 20 Inches 22.5 Inches
7.Overall size(L*W*H)	Strip cutter: 1800*1250*1600mm Block cutter: 1150*1250*1420mm
8.Weight	Around 2500kgs.

2.Strip Cutter (Manual Type)

Applications: It is used in cutting the used tire and side wall of waste tire into rubber strip.
Features: The materials of disc knife is a special metal heat treatment, so the knife is high hard, wearable and durable.

Main Technical Spec.:

1. Production capacity	2000Kg/H
2. Motor power	7.5KW
3. Motor rotating speed	1440R/Min
4. Speed reducer model	350
5. Speed ratio	31.5
6. Size of discharged materials	20-40MM
7. Machine weight	720Kg
8. Overall dimension	1300*750*1500mm

Tire Block Cutter (Manual Type)

Application:
It is used together with strip cutter to cut long rubber strip into rubber lump of 20-40mm.
Characteristic:
the cutter materials are excellent hard alloy steel, high hard and wearable.
Main Technical Spec.:

1. Production capacity	1000Kgs/H
2. Motor power	18.5KW or 22KW
3. Motor rotating speed	1440R/Min
4. Size of discharged materials	20-40mm
5. Machine weight	750Kgs
6. Overall dimension	850*850*1250mm

Detailed Photos Packaging & Shipping
Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional manufacturer of rubber machines for over 20 years.

Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, tire reclaim rubberr machine, butyl reclaim rubber machine, EPDM rerclaim rubber machine, rubber powder machine, rubber mixing production line,etc.

We enjoy good repuation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business realtions and develop domestic and international market jointly on the base of equality and mutual benefits.

---
