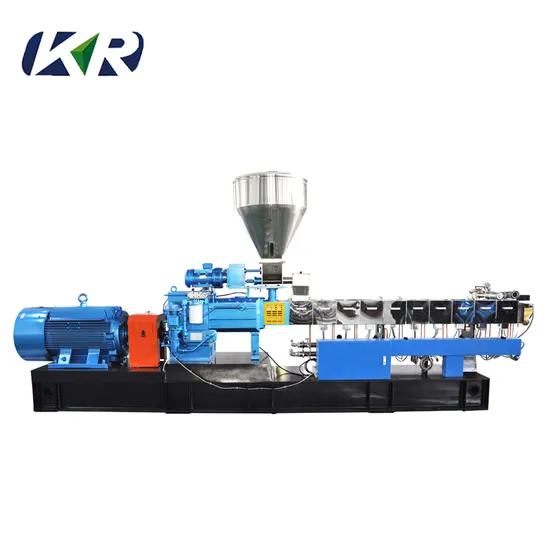

PP PE Pelletizing Making Machine/Pelletizer (water ring method) /EPDM Rubber Use Nano Calcium Carbonate Filler Masterbatch

US$61,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

TSE series

Raw Material

PE, PP, PVC, ABS, WPC, Polystyrene, PA, EVA, Pet

Screw

Double-Screw

Inverter

Electromagnetic Heater

Automation

Automatic

Computerized

Customized

Certification

CE, ISO9001:2008

Condition

New

Keyword

Twin Screw Extruder

Place of Origin

Jiangsu, China

Application

Compounding, Cutting, Pelletizing, Granulating

Extruder

Parallel Twin Screw Extruder

Diameter of Screw

62.4mm

Motor

Wannan or Siemems

Power

90 Kw

Capacity

200-300 Kg/H

Screen Changer

Hydrulic Screw Changer

Comtroller

PLC

Transport Package

Export Wood Packing with Soft Plastic Foam

Specification

CE ISO9001 SGS

Trademark

kaironggroup

Origin

Nanjing Jiangsu

HS Code

84772090

Production Capacity

500

Product Description

Model	Diameter	L/D	Screw rotary	Motor Power	Torque	Capacity
TSE-40B	41mm	32-52	600r/min	30kw	239	90-150kg/h
TSE-52B	51.5mm	32-56	600r/min	55kw	438	225-300kg/
TSE-65B	62.4mm	32-60	600r/min	90kw	716	200-300kg/h
TSE-75B	71mm	32-64	600r/min	132kw	1050	300-600kg/h
TSE-95B	93mm	32-64	600r/min	250kw	2387	800-1200kg/h

The machines are designed by suing the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and
venting, screen changing, way of granulating, and the control mode can beoptimally adjusted according to different materials
properties and requirements in consideration of the versatility in each general applications.
Representative Materials

Process	Representative materials
Mixing nature-changing	PE/ PP/ PS+SBS; PA+EPDM; PP+NBR; EVA +Silicon rubber, etc.
	PE/ PA/ PC/ CPE+ABS(alloy); PBT+PET; PP+ PE, etc.
Filling nature-changing	PE/ PP/ EVA, ect. + Calcium carbonate/ talcum powder/ titanic powder; ABS/PC/PS, etc. +aluminum hydroxide/ magnesium hydroxide/ antimony oxide.
	PP/ PA/ ABS+ ferrous powder/ sulphuric powder/ ceramic powder
Functional machine pellets	PP/ PA/ ABS/ PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets
	PE/ PP/ PS, etc+ starch: de-composing machine pellets
	PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets
	PE/ EVA/ ABS, etc.+ carbon black; black machine pellets
Colored machine pellets	PE/ PP/ ABS/ AS/ PA/ EVA/ PET +pigment and auxiliary
Intensified glass fibres and carbon fibres	PP/ PBT/ ABS/ AS/ PA/ PC/ POM/ PPS/ PET, etc. + long fires/ small fibres/ carbon fibres/ crystals and so on, etc.
