Flat High Pressure Pallet Production Line Hydraulic Hot Press 120 Ton 4 Layers

Product Description

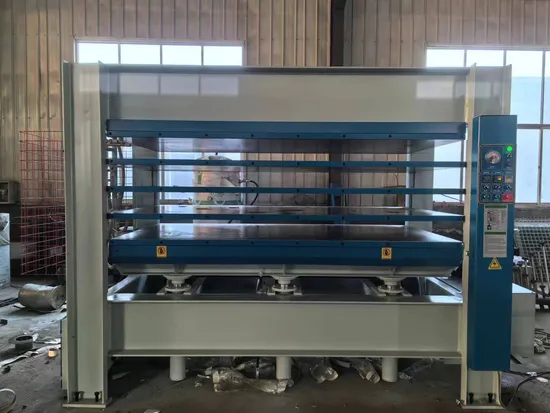

120 Ton 4 Layers Hot Press Machine Woodworking Machinery with Customized Working Layers/Pressure
ZD214/120(4)H
Product Parameters
We have a plenty kinds of hot press for you to choose freedomly.
You can choose it with different layers.
And here are four different layers of 120 ton hot presses.

Model	ZD214/120(1)H	ZD214/120(2)H	ZD214/120(3)H	ZD214/120(4)H
Total pressure (KN)	1200 KN	1200 KN	1200 KN	1200 KN
Platen No & size (mm)	1300x2500x42 mm	1300x2500x42 mm	1300x2500x42 mm	1300x2500x42 mm
Opening (mm)	80-150 mm	80-150 mm	80-150 mm	80-150 mm
Working layer Numbers	1	2	3	4
Cylinder No &Diameter (mm)	6 xФ100mm	6 xФ100mm	6 xФ100mm	6 xФ100mm
Heating Method	Electric heated with conduction oil	Electric heated with conduction oil	Electric heated with conduction oil	Electric heated with conduction oil
Hot platen open way	Automatically	Automatically	Automatically	Automatically
Closing speed (mm/s)	40 mm/s	40 mm/s	40 mm/s	40 mm/s

And you can also select the number of cylinders.Here are examples.
If you are interested, please feel free to contact me. Our Advantages
1. Hot press plate: The use of high-quality carbon solid steel plate drilling, high precision, high strength, durable;
2. Heating system: The use of thermal oil boiler, countercurrent heat transfer, with low pressure and high temperature characteristics, greatly reducing the pressure and safety requirements of the heating system. Closed cycle heating, through the expansion of the oil tank and the atmosphere, liquid phase transmission of heat, heat loss is small, energy saving effect is significant, environmental protection effect is good.
3. Hydraulic system: The main hydraulic components are imported, and the pressure is adjustable. Cylinder: by precision CNC machining, using imported oil seal, no oil leakage phenomenon.
4. Control system: microcomputer hand automatic integrated control, just press the button, you can complete the pressure plate rise, close, pressure, pressure retention, timing, pressure plate drop and other complete procedures.
5. Use: Suitable for furniture factory, door factory, wood-based board secondary processing (professional veneer) factory, used for hot-pressing adhesion furniture panels, building partitions, wooden doors, in a variety of wood-based board such as: plywood, woodworking board, MDF, particleboard surface pressure paste all kinds of decorative materials: decorative cloth, stickers, veneer, PVC and so on. It can also be used for veneer drying and leveling, and the leveling and shaping effect of colored decorative wood chips is remarkable.
Using our machine,you can get product like this:
