Small Portable Cellular Lightweight Foam Concrete Machine

Product Description

Product Description

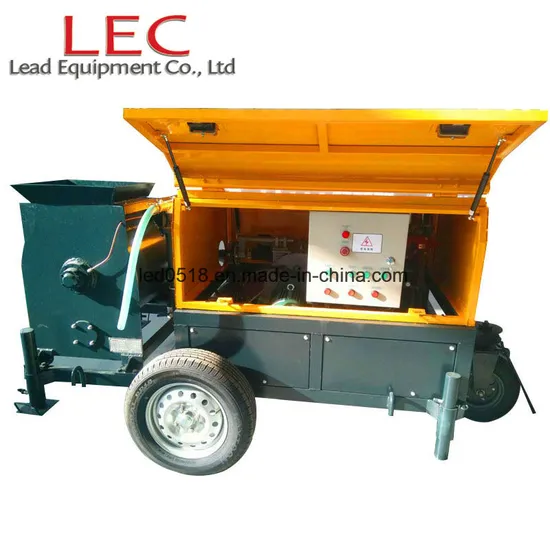

Small portable cellular lightweight concrete machine
LF5 foam concrete machine is a self-developed patent product, with completely independent intellectual property rights. Our product is the only one that can compare with overseas machines, which adopt digital control technology and can continuously and exactly adjust foam cement density. It also meets different densities of foam concrete products manufacturing. At present, our products have already big batches exported to overseas markets, achieving a historic breakthrough in the china cement foam machine from import to export.
Detailed Photos
Features:
1. LF5 foam concrete machine is a small-sized foam concrete machine, designed for compact construction, which is easy to operate, mobile, and low cost;
2. Pumping, foaming, and mixing system assembles as a whole, convenient to use;
3. It has a continuous feeding system and water supply system, with high pumping height and low power requirements.
4. Adopt one phase power source, and the power is moderate, and convenient for family construction.
Product Parameters

Model		LF5
The actual output (m3/h)		3-5
Max.convening distance(m3)	Horizontal	300
	Vertical	40
Voltage (V)		380 or as request
Power		Single /three phase
Total motor power(kW)		4.5
Mixing tank capacity (L)		200
Filling height (mm)		880
The total weight (kg)		910
Over dimension(mm)		2100*1340*1390

Shipping List

LF5 foam concrete machine	1 set
φ32mm x 20m delivery pipe	3 pieces, 60 meters totally
Water bag	1 set
Toolbox	1 set
Screw feeder	1 set
water pump	1 set

Contact us for a more detailed product catalog and quotation. Related Products
LF5H/LF10H CLC block making machine includes 2 Concrete Mixers, a Screw Conveyor, a Belt Conveyor, a Foam Generator, and a Hose Pump, adopts centralized control technology, and can exactly adjust the density of foam cement.
It is specially designed for CLC block making, and this machine with Auto-Weighting System can automatically measure cement, sand, etc. raw material, very convenient to operate.
LF20/LF30/LF40 electric foam machine concrete machine includes a Screw (Belt) Conveyor, a Concrete Mixer, a Foam Generator, and a Hydraulic Piston Pump, adopts centralized control technology, can exactly adjust the density of foam cement, is suitable for floor and roof insulation.
LF20D diesel foam cement machine includes a Screw (Belt) Conveyor, a Concrete Mixer, a Foam Generator, and a Hydraulic Piston Pump, adopts centralized control technology, and can exactly adjust the density of foam cement, suitable for floor and roof insulation.
LM2000 cellular lightweight concrete mixer includes feeding system-Track and Hopper, foaming system-Foam Generator, mixing system-Foam Concrete Mixer, controlling system-Control System, and storing system-Foam Concrete Tank. The foam concrete mixer is used to mix cement, sand, foams, etc. raw materials based on certain proportions into fluid foam concrete, and the foam concrete can be used for floor heating, roof insulation, clc blocks, cast-in-situ walls, foundation pit filling, tunnel filling, etc.
LP30 foam concrete pump is mainly used for pumping foam concrete slurry. This foam concrete pump adopts hydraulic system to pump foam concrete, more powerful, Max. horizontal pumping distance can be up to 500m, Max. vertical pumping distance can up to 180m, easy to pour roof, floor, and wall.
Contact us for a more detailed product catalog and quotation. Product Application
Application of foam concrete
External wall thermal insulation Thermal insulation roofing Thermal flooring Upstandingbeam foundation ditches filling Sound insulation and fire protection walls Playground and track construction Sound insulation layer, tunnel lining filling Cellar, basement, and arch filling Sewers and Drains filling Horizontal floor heightening Water tank and fuel tank building Platform filling and mending Garden and rockeries Foam concrete block Foamed concrete precasting, hollow wallboard casting
Our foam agent
LA40 cement foaming agent for foam concrete is a high-tech product. It has characteristics such as high expansion ratio, balanced density, foaming stability, long continuance, etc. Thus, it is an environmental protective mighty foaming agent, which is non-toxic, odorless, nuisance-free, and pollution-free.
Our block mold
Packaging & Shipping

FAQ
In order to recommend more suitable models of foam concrete machines, please let us know clearly about your requirements:
1. What project you will do? CLC blocks, walls, floor, roof, or other?
2. How much capacity do you need?We have 5m3/h,10m3/h,20m3/h,30m3/h,40m3/h for your choice.
3. What materials do you use to make foam concrete? Cement, sand, foam agent, water?
4. How much density of foam concrete do you want to make? We always make 400-1600kg/m3.
5. May I know what is your voltage? 3phase, 380V, 50Hz is OK for you?
6. May I have your WeChat or WhatsApp number so that we can talk with each other more fluently?
Please contact us for more information!

---
