Welcome to visit

Multi Core Tc Coiled Security Alarm Cable

US$0.10-0.65 10,000 Meters (MOQ)

Basic Info.

Model NO.
dx-al-15
Cover Material
PVC
Material Shape
Round Wire
Conductor Type
Stranded
Certification
CE, RoHS
Transport Package
Coil
Specification
100m
Trademark
dx
Origin
Jiaxing
HS Code
85444911
Production Capacity
500000m/Year

Product Description

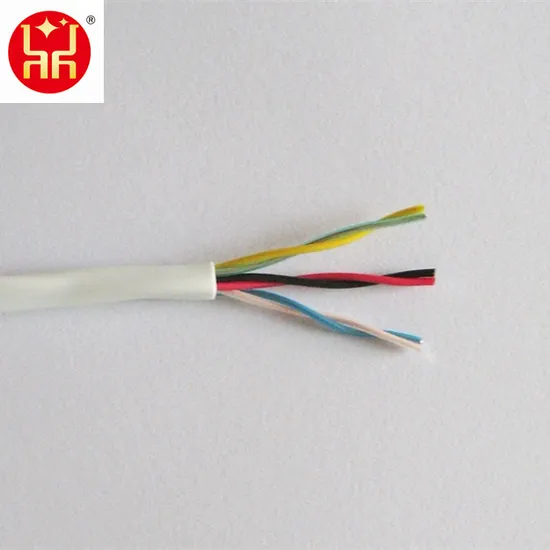

Product DescriptionHigh Quality Alarm Cable
(1)2C/7x0.24mmBC
(2)I.D:1.2mmPVC +Nonwovens +Tear line
(3)O.D:3.3mmPVC
Application
These cables are designed for installation signle alarm and alarm systems.They allow the connection of contacts,detectors and sensors,infrred as well asmicrowave or mixed technoiogy to the switchboard
Detailed Photos
Model NO. Alarm Cable
Conductor Dimension According to customer's request
Conductor MaterialOFC/TC/CCA/TCCA
Insulation1. Water blocking swellable tape (optional)
2. HD-PE (High density polyethylene)
3. PVC
Number Of Cores
1 pair/2 pair/3 pair and so on
Filler cotton
Shielding 1Al Foil
Shielding 2144/0.12mm Tinned copper braiding
JacketPVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)
ColorDifferent color is available
Operating temperature-20 ° C - +75 ° C
Service Life20~25 years

Model
Specification
Product Description
DX-AL-01
2Cx22AWG
2CX7/0.20mm OFC I.D:1.0mmPVC O.D:3.2mmPVC
DX-AL-02
4Cx22AWG
4CX7/0.20mm OFC I.D:1.0mmPVC O.D:3.8mmPVC
DX-AL-03
6Cx22AWG
6CX7/0.20mm OFC I.D:1.0mmPVC O.D:4.1mmPVC
DX-AL-04
8Cx22AWG
8CX7/0.20mm OFC I.D:1.0mmPVC O.D:4.5mmPVC
DX-AL-05
10Cx22AWG
10CX7/0.20mm OFC I.D:1.0mmPVC O.D:5.0mmPVC
DX-AL-06
12Cx22AWG
12CX7/0.20mm OFC I.D:1.0mmPVC O.D:5.5mmPVC
DX-AL-07
2Cx22AWG
2CX7/0.20mm OFC I.D:1.0mmPVC +AL O.D:3.2mmPVC
DX-AL-08
4Cx22AWG
4CX7/0.20mm OFC I.D:1.0mmPVC +AL O.D:3.8mmPVC
DX-AL-09
6Cx22AWG
6CX7/0.20mm OFC I.D:1.0mmPVC +AL O.D:4.1mmPVC
DX-AL-10
8Cx22AWG
8CX7/0.20mm OFC I.D:1.0mmPVC +AL O.D:4.5mmPVC
DX-AL-11
10Cx22AWG
10CX7/0.20mm OFC I.D:1.0mmPVC +AL O.D:5.0mmPVC
DX-AL-12
12Cx22AWG
12CX7/0.20mm OFC I.D:1.0mmPVC +AL O.D:5.5mmPVC
DX-AL-13
2Cx22AWG
2CX7/0.20mm OFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:3.2mmPVC
DX-AL-14
4Cx22AWG
4CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:3.8mmPVC
DX-AL-15
6Cx22AWG
6CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:4.1mmPVC
DX-AL-16
8Cx22AWG
8CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:4.5mmPVC
DX-AL-17
10Cx22AWG
10CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:5.0mmPVC
DX-AL-18
12Cx22AWG
12CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:5.5mmPVC

Quality ControlConsistent quality is the key to develop long-term business relationship; therefore Dingxin valued consistent quality throughout every phase of manufacturing process. From raw materials to finished products, we perform intense quality checks to maintain our product quality. Equipped with a wide range of testing equipments and experiment facilities, our in-house laboratory provides a reliable foundation for performance and quality.
Packaging & ShippingPacking length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 2/4/ 6 roll / carton box ;
Other packing according to customers' request
Company ProfileJiaxing Dingxin Electronic has specialized in manufacturing cable and its parts since 2012.
Our products mainly including audio and video cable, speaker cable, microphone cable, telephone cable, electric wire ,monitor cable, alarm cable, fire alarm cable and related parts& accessories etc.
All cables export only . We have many years of production experience and are familiar with the needs of all regions of the world
Our cable products are exported to all parts of the world by taking advantage of our hard-won reputation, honesty, reliability and quality, Dingxin's goal is to ensure product quality and better serve customers
At the same time, we are looking for global partners overseas. If your company is the end user, distributor or agent of cables, please contact us.
We look forward to working with you in the near future.
