11/12kv High Voltage Indoor Vacuum Circuit Breaker

Product Description

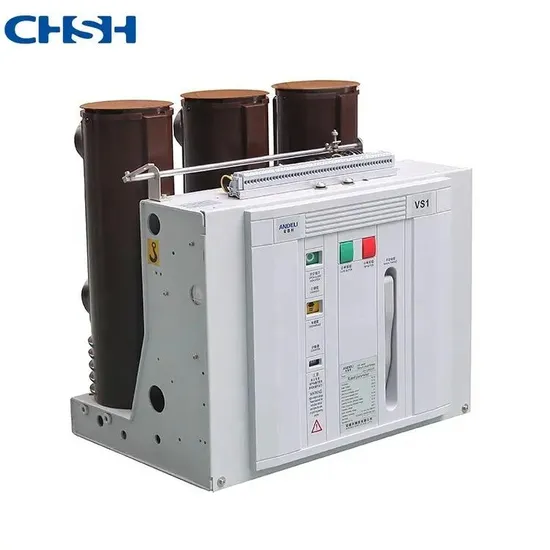

Product Description VS1-12 series of indoor vacuum circuit breaker with common insulated cylinder is three-phrase A.C. 50 Hz indoor power distribution equipment with the rated voltage of 12KV. It' s used for protecting controlling the electrical equipment in the fields of industry and mining enterprise, power plants and substation.This type vacuum circuit breaker conforms to national standards and the stipulation of IEC standard, the capability
reaches grade of M2-E2-C2.
The product adopts composite insulation way,spring charged operation and rod push mechanism,with the characteristics of small volume, compact design and reliable operation. It can easily match with the switchgear and meet the "Five Preventions" demands.
This kind of vacuum circuit breaker can be used for many kinds of switchgear like KYN28(GZS1). This series of products include: VCB truck isolation truck and Fuse truck, etc.
Detailed Photos
Product Parameters

Item		Units	Value
rated voltage		KV	12
rated frequency		Hz	50
rated insulation level	1 min power frequency withstand voltage	kA	to ground/ interphase: 42/48
	lightning impulse withstand voltage (peak)		to ground/ interphase: 75/85
rated short circuit breaking current		kA	20	25	31.5		40
rated current		A	630	630	1250	1600	1250	1600
			1250	1250	2000	2500	2000	2500
rated short-time withstand current		kA	20	25	31.5		40
rated peak withstand voltage			50	63	80		100
rated short circuit closing current			50	63	80		100
rated duration for short circuit current		S	4
mechanical life		Times	20000
power frequency withstand voltage of the second loop (1 min)		V	2000
rated operation sequence			0-0.3s-Co-180s-Co

Packaging & Shipping Wooden case or as you request.
Company Profile Shenheng Power Equipment CO., LTD is a company specializing in the production of high and low voltage switch power transmission and distribution equipment and high, low voltage electrical components, one of the professional production enterprises, the production of all fully insulated and fully sealed inflatable cabinet, intelligent solid insulation ring main unit, outdoor high voltage cable branch box, box-type substation, etc. Product quality is stable, reliable, It is deeply trusted and approved by the customers. Manufacturing of the main products are YBW box-type substation, KYN61-40.5, KYN28A - 24, KYN28A - 12, XGN2-10, HXGN-10 high voltage switchgear, XGN ring net cabinet, SHSRM inflatable ring main unit, SHSG solid ring main unit, MNS, GCS, GCS, GGD, XL low voltage switchgear , vacuum circuit breaker , oil immersed transformer , dry type transformer , current /potential transformer ,load break switch and other transmission and distribution equipment. For a long time also for all kinds of metallurgy, shipbuilding, electric power, mining, and intelligent buildings, high-rise buildings, hospitals, schools and other industries to provide high quality power transmission and distribution of complete sets of equipment and electrical control equipment. The company has a strong technical force, sophisticated technology and sophisticated testing methods, and the products sell well across the country.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2012,sell to Domestic Market(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Substation; Transformer, Switch gear, PV Combiner Box, PV Inverter.
4. why should you buy from us not from other suppliers?
1. 12 year's Professional manufacturer of medium & high voltage power distribution equipment .
2. Excellent Supplier of The State Grid Cooperation of China.
3. ODM OEM services.
4. Strong research and development team.
5. Authoritative certificate.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian.

---
