Estop High Efficient Easy Operate Milling and Gantry China Grinding Machine

Product Description

Product Description

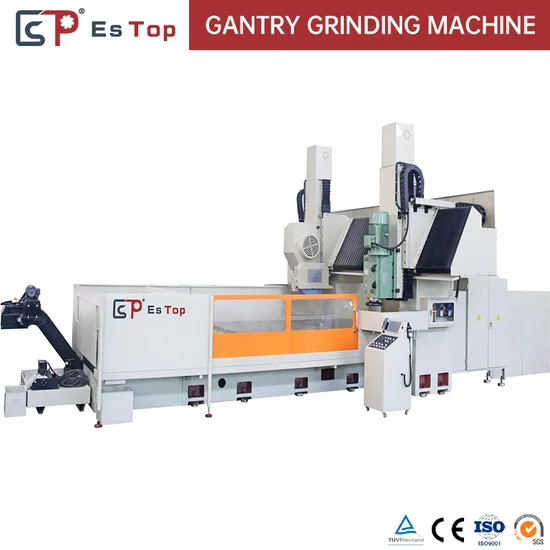

Estop High Efficient Easy Operate Milling And Gantry China Grinding Machine
Gantry Surface Grinding:
These series, various in size, are the most powerful saddle type surface grinding machines that show high efficiency as well as high precision for large parts and molds.
-High precision spindle and spindle motor with lower vibration and noise
-Durable and suitable for precision grinding
-Intensive research planning and manuacture by high-elasticity structure
-Excellent durability and heavy grinding available
-4-point suspension mode cross travel guide way
Product Parameters:

Main item	Multi-functional Milling and Grinding Machine	Unit	ETLD-1230	ETLD-1530	ETLD-1830	ETLD-2030
Worktable	Electromagnet table size(x*y)	mm	3000x 1200	3000x 1500	3000x1800	3000x2000
	Left and right Xaxis travel	mm	3200		3200
	Max center of wheel to table	mm	620 630		620
	Two column passed maximum workpiece size	mm	1500 1930		2410
	Worktable Maximum loading copacity	kg	6500		7000
	Worktable feed speed	m/min	5-30		5-30
	Table t-slot specification	mm*n	18x4	18x6	18x6	18x8
Grinding wheel	Grinding wheel size max	mm	Φ500xΦ203x 50-75		Φ500xΦ203x50-75
	Spindle motor	HP*P	25x4		25x4
	(50HZ/60HZ) Grinding wheel speed	R.P.M	1450		1450
Size	Height of machine(Move to top Height)	mm	≈3600	≈3500	≈3600
	Layout Floor space(Length X width)	mm	7600x3350	8520x 3700	8620x4250
	Weight	kg	≈21000	≈24000	≈31500	≈33000

Product Category
One-stop Shopping
You can click on the picture to view the products you are interested in.
Our Service
Speed up your production and Achieve high quality with ESTopCNC. Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.

---
