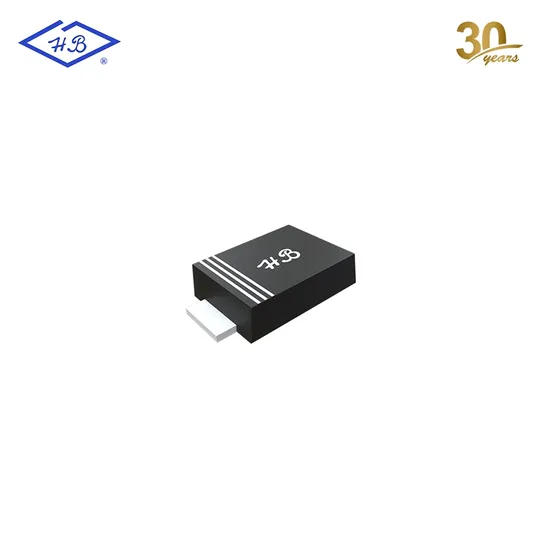

ES1JF Super Fast Recovery Rectifier Diode

US$0.0027-0.0054 3,000 Pieces (MOQ)

Basic Info.

Model NO.
ES1JF
Certification
RoHS, UL
Structure
Surface Mounted
Material
Silicon / Copper / Epoxy / Tin / Lead
Technique
Gpp
Production Type
Automation
Storage Temperature Range
-55 to 150 ºC
Case
Molded Plastic
Transport Package
Reel
Specification
SMAF
Trademark
HB
Origin
China
HS Code
854110
Production Capacity
300000000/Year

Product Description

Product Parameters ES1JF
Type Maximum Maximum Average Maximum Maximum Maximum Maximum Package
Dimensions
Peak Rectified Current Forward Peak Reverse Forward Reverse
Reverse @Half-Wave Surge Current Current Voltage Recovery
Voltage Resistive Load 60Hz @8.3ms Superimposed @PRV @25ºCTA @25ºCTA Time
PRV Io @TA IFM(Surge) IR IFM VFM Trr
VPK AAV ºC APK uAdc APK VPK nS
ES1JF 600 1.0 25 30 5.0 1.0 1.7 35 SMAF
Product Description FEATURES
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
For surface mounted applications
Low profile package
Easy pick and place
Built-in strain relief
Superfast recovery times for high efficiency
High temperature soldering: 250ºC / 10 seconds at terminals
Company Profile
FAQ Does Hornby Electronic offer customized product base on client's special requirements?
Yes, we can customize products on package, chips, Leads, solders. We have our independent R&D team and tactory to proceed special requirements. Pleace contact our sales for more details.
I can't find the part number that I am looking for. Is that means Hornby Electronic doesn't produce or have this parts?
We only put the most popular products on this platform. We provide many other products that you may interested in. Please contact our sales or managers for the diodes that you demand but are not found on the platform page.
I purchased HB products from other companies before. Are they authentic HB product?
We recommend you to purchase authentic HB Products from us or our authorized distributors. HB products from unauthorized sellers may have quality risks. You can check our partner page for authorized distributor list or ask our sales directly.
