Cheaper Vertical Milling Machine Zx7550c Knee-Type Milling Machine

Product Description

Product Description

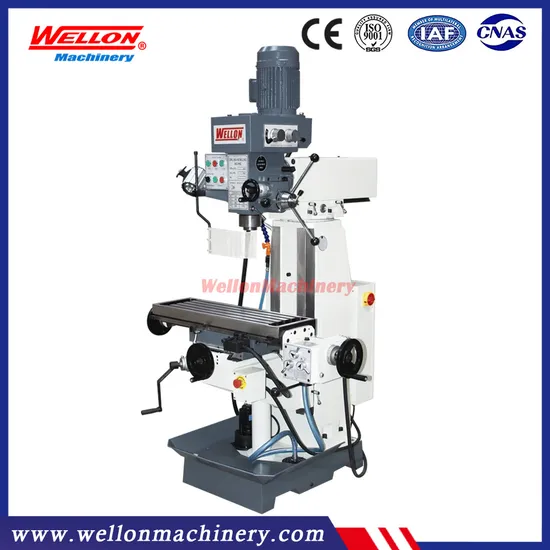

Vertical Horizontal Milling Machine ZX7550C

Detailed Photos
Product Parameters

Features:
1. Use as milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual
micro-feed for the spindle quill
Main technical parameters:

Model	ZX7550C
Max.drilling dia (mm)	50
Max.horizontal milling dia (mm)	100
Max.vertical milling dia (mm)	25
Max.boring dia (mm)	120
Max.tapping dia	M16
Distance.spindle to table surface (mm)	50-350
Spindle speeds range (r.p.m)	115-1750(V)
Spindle travel	120
Table size (mm)	1000×240
Table travel (mm)	600×210
Overall dimensions (mm)	1280×1100×2080
Motor (Kw)	0.85/1.5(V)
N.W/G.W (Kg)	800/950

Standard accessories:

Drill chuck

Reduction sleeve

Draw bar

X axis auto power feed

Collet chuck kits

Coolant system

Chip tray

Work lamp

Tools and box

Optional accessories:

Y axis power feed motor

Z axis power feed motor

3 axis DRO

Air draw bar

Separately control panel box

58 pcs Clamping kits

Spindle protection

Worktable protection

Worktable swivel ±45 degree

Rotary table HV10

Dividing head BS-0

Machine vice 160mm

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
