10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer

Product Description

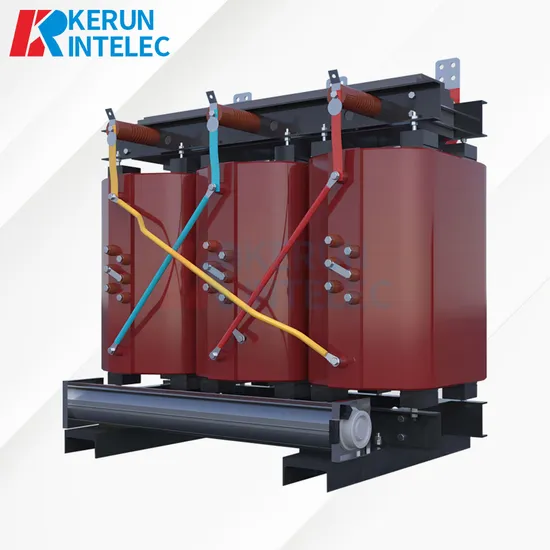

Cast Resin Dry Type Transformer
Technical Description
Rated power: up to 20MVA
Primary voltage: up to 35kV
Secondary voltage: up to 480 V
Cooling type: AN/AF
Frequencies: 50 Hz/60 Hz

10kV Dry Type Transformer
Rated capacity (kVA)	Voltage Combination (kV)		Connection Symbol	13Type Loss(W)		13Type Loss(W)		13Type Loss(W)		No-load current (%)	Impedance (%)	Noumenon Weight(kg	Gauge (mm)
	HV	LV		No Load	On Load	No Load	On Load	No Load	On Load
30	6 6.3 6.6 10 11 ±5% Or ±2 x2.5%	0.4	Dyn11 or YynO	105	640	130	640	150	710	2	4 6	245	400x300
50				155	900	185	900	215	1000	1.8		310	400x350
80				210	1240	250	1240	295	1380	1.6		410	400x315
100				230	1415	270	1415	320	1570	1.6		520	550x820
125				270	1665	320	1665	375	1850	1.2		670	550x820
160				310	1915	365	1915	430	2130	1.2		820	550x820
200				360	2275	420	2275	495	2530	1		880	550x820
250				415	2485	490	2485	575	2760	1		1010	660x820
315				510	3125	600	3125	705	3470	1		1160	660x820
400				570	3590	665	3590	785	3990	0.9		1340	660x820
500				670	4390	790	4390	930	4880	0.9		1470	660x820
630				775	5290	910	5290	1070	5880	0.8		1660	660x820
630				750	5365	885	5365	1040	5960	0.8		1710	660x820
800				875	6265	1035	6265	1215	6960	0.8		2070	820x820
1000				1020	7315	1205	7315	1415	8130	0.8		2600	820x820
1250				1205	8720	1420	8720	1670	9690	0.7		3190	820x1020
1600				1415	10555	1665	10555	1960	11730	0.6		3780	820x1020
2000				1760	13005	2075	13005	2440	14450	0.5		4520	1070x1070
2500				2080	15445	2450	15445	2880	17170	0.5		4930	1070x1070

35kV Dry Type Transformer
Rated capacity (kVA)	Voltage Combination(kV)		Connection Symbol	13Type Loss(W		No-load current (%)	mpedance (%)
	HV	LV		No Load	On Load(120ºC)
30	35 38.5 ±5% or ±2 x2.5%	0.4	Dyn11 or YynO	36C	1140	2.8	6
50				450	1425	2.6
80				540	1805	2.2
100				630	2090	2
125				700	2420	1.8
160				790	2810	1.8
200				880	3325	1.6
250				990	3800	1.6
315				1175	4510	1.4
400				1375	5415	1.4
500				1620	6650	1.4
630				1860	7695	1.2
800				2160	9120	1.2
1000				2430	10450	1
1250				2835	12730	1
1600				3240	15485	0.8
2000				3825	18240	0.7
2500				4455	21850	0.7

Dry Type Transformer Standards Compliant:
• Suitable for both indoor or outdoor.
• Air temperature: Maximum temperature: +40ºC; Minimum temperature:-25ºC.
• Humidity: Monthly average humidity 95%; Daily average humidity 90% .
• Altitude above sea level: Maximum installation altitude: 2000m.
• Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
• No frequent violent shake.
Dry Type Transformer Advantage:
• Safety: Since dry transformers do not contain flammable or toxic liquids that can leak or catch fire.
• Environmental protection: type power transformers do not use harmful liquids or liquids to work, so they will not release harmful gases into the environment causing greenhouse effect.
• Low noise: due to the use of laminated iron core technology and multiple layers of insulating paint on the outside of the iron core, the noise of the cast resin dry type transformer is reduced.
• Low loss: dry-type transformer adopts higher grade silicon steel sheet, which belongs to high energy efficiency grade transformer, the no-load loss is 15% lower than SCB12 transformer, and the load loss is 10% lower than SCB12 transformer.
• Low installation cost: small size, light weight, less space occupation, no need for fire extinguishing system and low installation cost.
• Maintenance: Since the dry-type transformer does not use liquid for filling and the use of accessories, it requires almost no maintenance.
• Sustainability: small partial discharge (usually below 10PC), high reliability, long-term safe operation can be guaranteed, and the service life can reach 30 years.
• Good heat dissipation effect: the composite insulation composed of pure resin and glass fiber has extremely high electrical strength, which improves the heat dissipation efficiency of the winding surface.
Dry Type Transformer Applications:
• Chemical, oil, and gas industry.
• Environmentally sensitive areas (e.g. water protection areas).
• Fire-risk areas (e.g. forests).
• Inner-city substations.
• Indoor and underground substations.
• Renewable generation (e.g. off-shore wind turbines ).
Dry Type Transformer Manufacturers:
KERUN engineers have 40 years of experience in the transformer industry and have accumulated a wealth of experience in participating in different projects in various countries. Based on project cooperation cases, KERUN can help you analyze the types of transformers you need in project construction and provide complete power distribution and other solutions.
Q:Who are you?
A:Sourceway is a company in growth. We have reached many of our goals, and established solid marketing foundation in many countries.
Q:Are you a manufacturer or a trading company?
A:We are a professional transformer manufacturer with more than 20 year's experience.Support OEM&ODM.
Q:Which markets do you mostly export to?
A:We are exporting to more than 20 countries in South America, North America, Europe, Middle East, Africa and so on.
Q:What certificates and standards do you have?
A:ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates. A:IEC, ANSI, KEMA, GOST standard.
Q:How long is your delivery time?
A:After determining the plan, we will complete production and shipping within 20 days. It mainly depends on the quantity.
Q:What is the standard of package?
A:Our nomal package are divided into three types:wooden pallets, wooden frames, and wooden boxes.Also it can be customized.
Q:What currencies and payment Type do you support?
A:Payment Currency:USD,CNY.
Payment Type:T/T,L/C.
Q:Why choose KERUN?
A:After comparing the quality, delivery and price of the same products, believe you will choose KERUN.

---
