US$29,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
4050X5050X4050
Production Capacity
500 Pieces/Year
Product Description

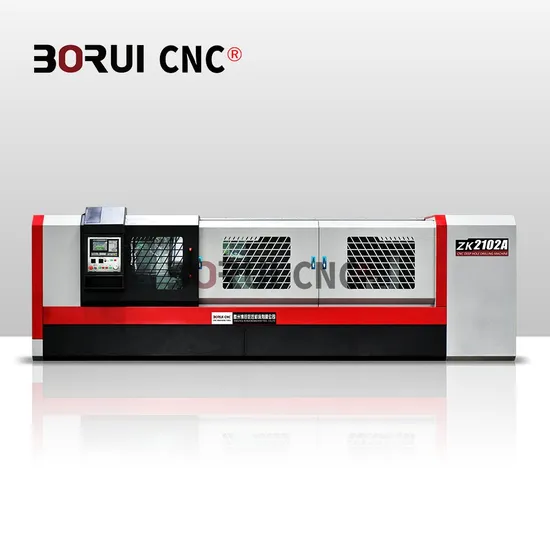

ZK2102A Hot Selling Electric CNC Deep Hole Drilling Machine 20mm Product Description
Machine Specification:
Specifications
| ZK2102A
| ZK2102A×2
| ZK2102A×4
| ZK2103A
| ZK2103A×2
| ZK2104A
|
Number of spindles
| 1
| 2
| 4
| 1
| 2
| 1
|
Spindle spacing
|
| 120/180mm
| 120mm
|
| 180mm
|
|
Borehole diameter range
| 3-20mm
| 3-20mm
| 3-10mm
| 4-16mm
| 8-20mm
| 6-30mm
| 6-30mm
| 10-40mm
|
Maximum drilling depth
| 500/1000mm
| 440/950mm
| 440/950mm
| 440/950mm
| 440/950mm
| 440/950mm
|
Total power of machine tool (approx.)
| 7000r/min
| 7000r/min
| 7000r/min
| 6000r/min
| 5000r/min
| 7000r/min
| 6000r/min
| 3000r/min
|
Power of main motor of drill pipe box
| 4kW
| 4kW×2
| 3.7kW×2
| 4kW×2
| 5.5kW×2
| 5.5kW
| 5.5kW×2
| 7.5kW
|
Headstock spindle speed (fixed)
| 380r/min
| 600r/min
| 500r/min
| 380r/min
| 600r/min
| 380r/min
|
Headbox main motor power
| 1.5kW
| 3kW
| 2.2kW×2
| 1.5kW
| 2.2kW
| 5.5kW
|
Tool feed speed range (stepless)
| 5-500mm/min
| 5-500mm/min
| 5-500mm/min
| 5-500mm/min
| 5-500mm/min
| 5-500mm/min
|
Spindle speed of drill pipe box (stepless)
| 800-7000r/min
| 800-7000r/min
| 1000-7000r/min
| 800-5000r/min
| 600-4000r/min
| 600-6000r/min
|
| 100-3000r/min
|
Feed speed range (stepless)
| 5-500mm/min
| 5-500mm/min
| 5-500mm/min
| 5-500mm/min
|
| 5-500mm/min
|
Tool feed rapid travel speed
| 3m/min
| 3m/min
| 3m/min
| 3m/min
| 3m/min
| 3m/min
|
Tool feed motor torque
| 7.7Nm
| 7.7Nm
| 7.7Nm
| 10Nm
| 10Nm
| 10Nm
|
Cooling system * high pressure
| 10MPa
| 10MPa
| 10MPa
| 10MPa
| 10MPa
| 10MPa
|
Cooling system * large flow
| 100L/min
| 100L/min
| 100L/min
| 100L/min
| 150L/min
| 100L/min
| 150L/min
| 150L/min
|
Total power of machine tool (approx.)
| 20kW
| 24kW
| 39kW
| 40kW
| 42kW
| 22kW
| 28kW
| 38kW
|
Overall dimensions of machine tool (length × wide × High)
| 4.05/5.05×4.05×2.05m
|
Total weight of machine tool (approx.)
| 6t/7t
| 6t/7t
| 6t/7t
| 6t/7t
| 6t/7t
| 7t/8t
|
Machining hole diameter accuracy of machine tool
| IT7-IT11
|
Roughness of machine tool
| Ra0.4-3.2µm
|
Deviation of center line of machine tool machining hole
| Workpiece does not rotate:≤1mm/1000mm Workpiece rotation:≤0.5mm/1000mm(Aspect ratio≤100:1)
|
Straightness of machined holes
| ≤0.05mm/100mm(Aspect ratio≤100:1)
|
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
>>
