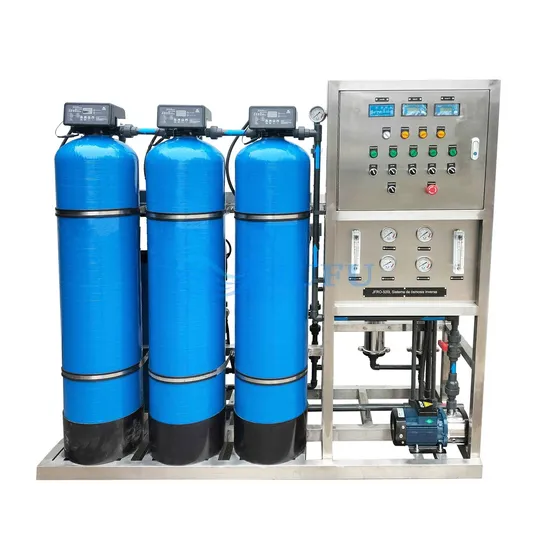

500lph Water Filter Machine Water Purification System RO Water Treatment Reverse Osmosis System for Commercial Use Factory Price

Product Description

What is Reverse Osmosis(RO)?
Reverse osmosis (RO) is a water purification technology that uses semi-permeable membranes to remove ions, molecules and larger particles from drinking water, resulting in purified water. In Reverse osmosis, an applied pressure is used to overcome the osmotic pressure and push the water from high concentration of contaminants to low concentration of contaminants. Our brackish reverse osmosis water system can treat high salt underground well water with TDS(total dissolved solid) from 2000ppm up to 20000PPM. And make the brackish water become domestic consumption line water for resident, irrigating water for algricultrure, industry water supplier, commercial bottle water company ect., which can solve the problem for country shortage in potable water.
Working Flowchart of RO system

Raw water → original water tank → original water pump → multi-media filter (quartz sand filter)→ activated carbon filter → soft water processor → precision filter → high pressure pump → first stage reverse osmosis (RO) device → pure water tank → high pressure pump → second stage reverse osmosis → ultraviolet sterilization device → water point

Specification

500LPH Reverse Osmosis System
Model	JFRO-500L
Power	1.5KW
Power Supply	220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized
Operating Pressure	0.8 - 1.2MPa
Recovery Rate	50%
Producing Capacity	500L/H
Desalination Rate	99.5%
RO Frame	SUS304
RO Membrane	DOW / Hydranautics / Troy / Vontron (Optional)
Number of Membranes	2
Pump	CNP / NYP ... (Optional)
Tank Material	SS / FRP (Optional)
Control Valve	Manual / Automatic
Control Valve Brand	FLECK / RUNXIN
Membrane Housing	SS / FRP
Pipe Material	U-PVC/ Stainless steel (Optional)

Product Details

RO Feed Water Requirement
Silt Density Index (SDI)	15<5
Turbidity	<1.0 NTU
Organic matter content	<1.5
Free residual chlorine	polyamide composite membrane <0.1mg/L
Operating temperature	4ºC~45ºC for composite membrane
Residual chlorine content	<0.1mg/L
Iron content	Fe<0.05 when dissolved oxygen >5mg/L
Silicon dioxide content	SiO2<100

Company Profile
FAQ Q: What's the type of your company? Manufacturer or Trading agent?
A: We're the Hi-tech manufacturer in Water treatment industrialfor almost two decades, we specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation andConsulting on water treatment and water purification equipment and technologies. Q: What kind of information need to be provided for product selection? A: What 's the raw source of your water? If possible, please provide Water Analysis Report. B: What's your request on the output capacity of the equipment? C: What's the application for the project? D: What's the piping standard applied in your local market? E: Do you need on-site installation guidance? Q:How can I choose the products which can be perfectly match my case? A: Tailor-made solutions will be provided by Jufu's professional engineer based on your requirements. All the pain-points
of the project will be highlighted and solved for overall optimization. Q: What's your payment terms? A: Deposit in advance and balance before delivery. Q: What's the leadtime? A: It depends. 3-5 weeks for general products. Q:What's your warranty? A: Jufu offers 1 year warranty for the products. The product itself can work for 5 years with proper use and maintenance.

---
