Ruihang High Quality HDPE Waterproof Coil Sheet Extrusion Line

Product Description

Ruihang Waterproof Coil Sheet Extrusion Line

Production line composition:
Single screw extruder, mold, three-roll calender, automatic winding device
Main features of the production line:
The cooling roller and stress-relieving cooling bed are used to make the film run smoothly and fully set, ensuring the shrinkage rate is less than 3%. The production line has the comprehensive characteristics of high degree of automation, low power consumption, easy operation, large output and low cost.
Features and applications of the products produced:
The product surface is flat, does not bulge, and has high density.

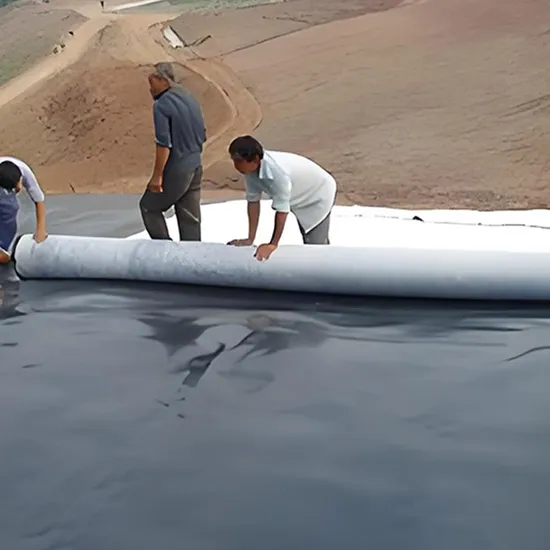

Application: Roof waterproofing of industrial and civil buildings, including planted roofs, flat roofs, sloping roofs, underground waterproofing of buildings: including waterproofing of reservoirs, dams, pools, tunnels, grain depots, civil air defense projects, landfills, artificial lakes, etc.
Main technical parameters:

Host Model	Single Screw GWS150	Single Screw GWS180	Single Screw GWS200	Parallel Twin Screw GWP95	Parallel Twin Screw GWP135
Raw Material	LDPE,LLDPE, HDPE,EVA,ECB,M-PE	LDPE,LLDPE, HDPE,EVA,ECB,M-PE	LDPE,LLDPE, HDPE,EVA,ECB,M-PE	LDPE,LLDPE, HDPE,EVA,ECB,M-PE	LDPE,LLDPE, HDPE,EVA,ECB,M-PE
Width(mm)	3000-4000	4000-6000	6000-8000	4000-8000	4000-8000
Thickness(mm)	1.0-3.0	1.0-3.0	1.0-3.0	1.0-3.0	1.0-3.0
Output(kg/h)	650-850	850-1000	1000-1200	1200-1500	1200-1800

Detailed Photos:
Products Photos:

---
