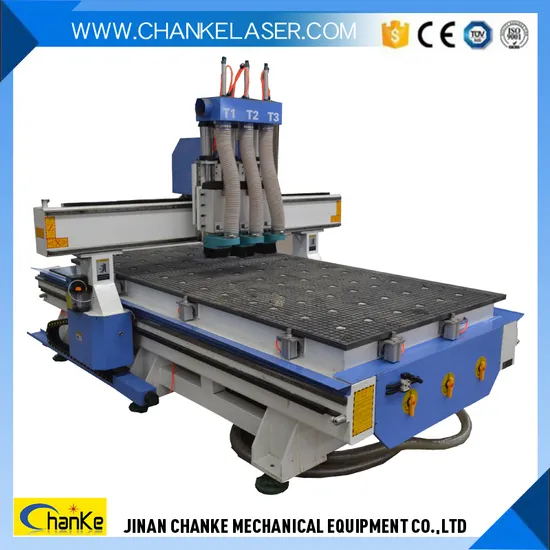

1325 4 Heads Wood Kitchen Cabinet Door CNC Router

US$8,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK1325
Voltage
380V
Transport Package
Plywood Packing
Specification
3200x2800x500mm
Trademark
CHANKE
Origin
Shandong China
HS Code
8465990000
Production Capacity
500

Product Description

Main Feature
*Four air cooled spindlem (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
*HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
*High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,
ensuring high speed and high precision at same time.
*Pneumatic ATC for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.
*Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
*Control system:We use the advanced Dsp, Nc-studio control system, Syntec from Taiwan or OSAI from Europ.
Technical Date
Item Model CK1325
1 Working area 1300*2500*250mm
2 Feeding height 250mm
3 X/Y/Z axis reposition accurancy +/- 0.02mm
4 Max running speed 50m/min
5 Max working speed 30m/min
6 X/Y axis transmission Gear and rack
7 Z axis transmission Ball screw
8 Guide rail Taiwan HIWIN square guide rail
9 Working table Vacuum and T-slot table
10 Spindle power 4.5kw air cooled spindle * 4pcs
11 Max spindle speed 18000 rpm/min
12 Collet ER32
13 Control system NK260 or Syntec control system
14 Motor Leadshine servo motor / Yaskawa servo motor
15 Working voltage 380V/ 3P/ 50HZ -60HZ
16 G.W./ N.W. 1800KG / 1600KG
17 Command G Gode
18 Computer interface USB port
19 Limit switch Japan Omron
