Label Printer Weighing Indicator

Product Description

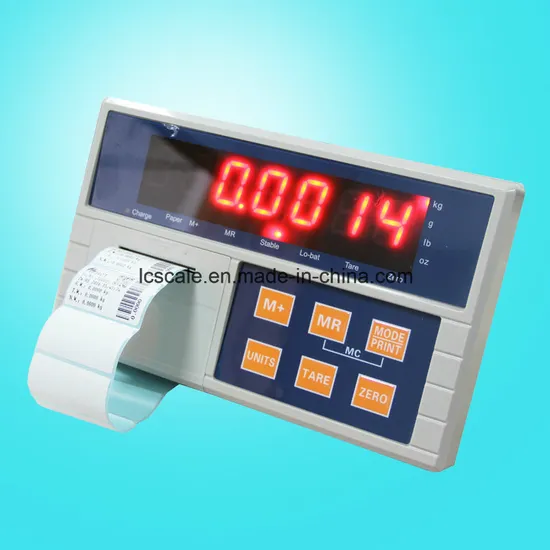

LC PWE weighing indicator with label printer

Standard Function:
Can store weighing data ,can store/check/delete
High precision A/D conversion with readability 1/30000
AC/DC power supply, with inside rechargeable 6V/4AH battery
Able to setup zero-tracking range
Able to setup print function
Weighing data save/check/delete

Standard RS232 communication interface with selectable baud rate and communication method

Technical Parameter:
A/D conversion method: ∑-
A/D conversion speed: 8 times/sec.
Max. A/D conversion bits: 20
Input signal range: -20mV~20mV
Input sensitivity: ≥ 0.02 μ V/e
Load cell excitation: DC 5V: 1 ≤ 150mA
Max. connection number of load cell:8 at 350 ohm
Load cell connection mode: 4 wire, auto compensation for long distance ≤ 10 meters
Verified counts: 30000
Display: 6 bits LCD, 8 status indications
Power supply: AC 230V, 50~60Hz; DC inside rechargeable 6V/4AH battery
Paper size:wide 57-58mm,diamter 38mm

Model	LC PWC	LC PWE
Display	6 bits LCD	6 bits LED
Capacity	6-800000kg	6-800000kg
Verified counts	30000	30000
A/D conversion method	∑-	∑-
A/D conversion speed	8 times/sec	8 times/sec
Max. A/D conversion bits	20	20
Input signal range	-20mV~20mV	-20mV~20mV
Input sensitivity	≥0.02 μ V/e
Load cell excitation	DC 5V: 1 ≤150mA	DC 5V: 1 ≤ 150mA
Max. connection number of load cell	8 at 350 ohm
Load cell connection mode	4 wire, auto compensation for long distance ≤ 10 meters
Temperature	0°C to +40°C / +32°F to +104°F
Power supply	AC 12V/500mA ; DC inside rechargeable 6V/4AH battery
Calibration	Manual calibration
Calibration weight	1%-100% Cap.	1%-100% Cap.
Appearance	ABS
Scale size(w x d x h)	260x156x68mm
Net weight	1.35kg

---
