Stma Factory Supply Big Construction Machinery 26tonne Digger Heavy Crawler Excavator for Sale with ISO CE

Product Description

STMA Factory Supply Big Construction Machinery 26tonne Digger Heavy Crawler Excavator For Sale With ISO CE
Product Description

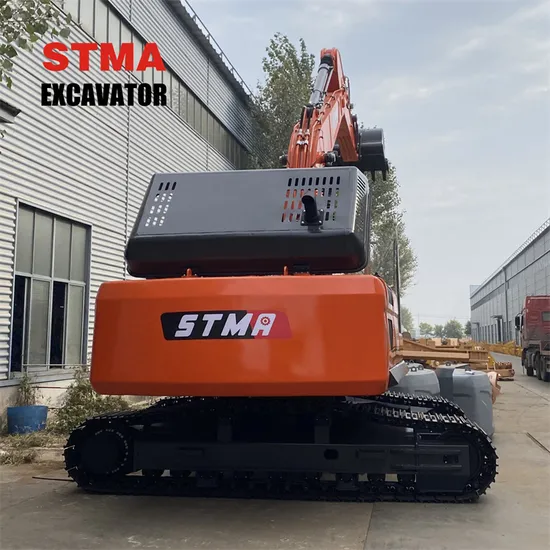

Heavy crawler excavator
Product Parameters
Specifications of crawler excavator

Manufacturer	STMA	Gradeability	30%
Model	ST260	Service weight	25000 kg
Engine model	Chinese engine	Total track width	3200 / mm
Engine power	169kw/2000rpm	Total track length	3945 / mm
Cylinder number	6	Track plate width	600 / mm
Rotate speed (RPM)	12.4	Max mining height	9695 / mm
Rotating torque (kn/m)	79	Max mining depth	6685 / mm
Ground specific voltage	48 KPA	Bucket capacity	1.4 CBM
traveling speed	4.9/3.1 KM/H	max excavation radius	9950 / mm
maximum drawbar pull	52 (kN)	Max uninstallation height	6850 / mm
arm crowd force	(kN)165 / 177.9	Max vertical mining depth	6095 / mm
Bucket digging force	(kN)107.5 / 115.3	wheel track	3200 / mm
Cylinder number	6	Back -end rotation radius	2850 / mm
Max traffic of the main pump	(l/min)2×119	Min ground clearance	480 / mm
Walking liquid pressure circuit	(Mpa)32.5	Track gauge	2500 / mm
Rotating liquid voltage circuit (MPA)	27.9	Boom length	5800 / mm
Joystick pump flow (L/min)	28.5	Arm length	2900 / mm
Rotary motor	South Korea Eaton	Total shipping height	3030 / mm
Walking motor	South Korea Eaton	Total shipping width	3200 / mm
Hydraulic valve	South Korea	Total shipping length	9610 / mm
Fuel tank (L)	350	Hydraulic fuel tank (L)	210

Features of mini excavator:
1. with stere reinforced shovel whose key parts increase the thickness of the steel plate adopts advanced manufacturing technology to improve the durability.
2. Large and robot welding arms, key areas of reinforcement.
3. The European and American version of the cab is 10cm wider than the conventional version, providing a wider view and reducing fatigue by 20%.
4. The imported control valve from South Korea, high performance rotary motor, and optimized hydraulic system make the rotation strong and powerful, and the operation more excellent.
5. Optimizi the parallel design of heat dissipation system to ensure the optimal operating temperature of the engine.
6. Optimize the intake system, strengthen the material of the filter element, achieve a filtration accuracy of 99.9%, and extend the repalcement cycle by 15%
7. Hydraulic system, high efficiency and energy saving, machine, diesel filter centralized maintenance, save time and worry.
