| US$3,500.00-10,345.00 | 1 Piece (MOQ) |
| Parameters | ||

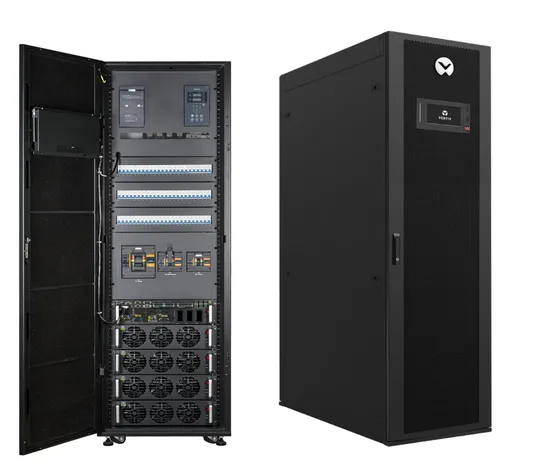

| Model APM 160kVA | ||
| Power(kVA/kW) 40 80 120 160 | ||
| Parameters | ||
| Weight(kg) 360 390 420 450 | ||
| W*D*H(mm) 600*1100*2000 | ||
| Input characteristics (rectifier) | ||
| Rated input voltage 380/400/415Vac,Three-phase four-wire | ||
| Rated operating frequency 50/60H | ||
| Input valtage range 228V~476V,-259%~+259%Fully loaded | ||
| Input frequency range 40Hz~70Hz | ||
| Input power factor at full load >0.99 | ||
| Input current harmonics (THDi) <3% | ||
| DC characteristics | ||
| Number of 12V battery cells in series Standard 32,configurable | ||
| Output characteristics (inverter) | ||
| Inverter output voltag 380/400/415Vac,Three-phase four-wire | ||
| Output power factor 1 | ||
| Frequency 50/60Hz | ||
| Inverter overload capability 110%overload for 1 hour,125%overload for 10 minutes | ||
| Bypass | ||
| Bypass input voltage 380/400/415Vac,Three-phase four-wir | ||
| Bypass voltage range -40%~+20%adjustment | ||
| System | ||
| Mains power synchronization tracking range ±3Hz range | ||
| System efficiency Upto 96.7% | ||
| ECO mode system efficiency Up to 99% | ||
| Intelligent power distribution unit Switch configuration Monitoring function | ||
| Input switching unit 400A/4P ATS | ||
| Input power distribution unit | 63A/3P×6+16A/1P×6 Switching status, voltage, current, power factor,current harmonic content, power consumption | |
| Output distribution unit 32A/1P×48 | ||
| Working environment | ||
| Operating temperature range 0~40ºC | ||
| Storage temperature -40~70 ºC(Battenies not indluded) | ||
| Relative humidity 5~95%no condensation | ||
| Max.operating height Altitude 1500m,for every 100m added between 1500 and 3000m | ||
| Noise <60dB | ||
| Protection level IP20 | ||
| Safety:IEC60950-1,IEC62040-1/AS 62040-1; Standards compliant Eectromagnctic Compatibility:IEC62040-2/AS 62040-2; Design and testing;IEC62040-3/AS 62040-3,YD/T2165 | ||
