Compactor Left Hand Drive and Right Capacity Garbage Truck Mt220326

Product Description

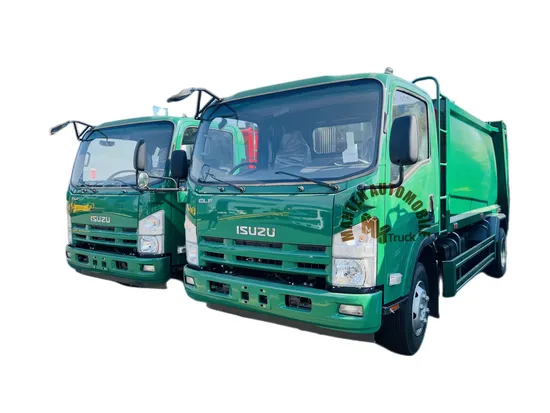

* ISUZU FRR 8m3 compression waste compactor garbage trucks * -------------------------------------------------------------- Our factory is professional manufacturer in truck area,
guarantee all goods Brand-New and High-quality.

» I.Product Describution:
Manufacturer: Hubei Manten Automobile Co.,Ltd.
Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.
Garbage truck also known as Compressed garbage truck,Garbage trucks collect trash truck, garbage compactor, garbage collector truck, electric garbage truck, garbage collection vehicle, garbage container lift trucks, garbage collector, garbage compressor truck, garbage compressor, swing arm garbage truck, hook lift garbage truck,skip loader garbage truck,waste compressor, rubbish compactor etc.
» II.Product Parameter:

Main specification		Chassis brand		ISUZU
		Chassis model		QL1070A1HAY
		Overall dimension(L*W*H)		6950x2050x2600mm
		Compressed tank		6m3
		Rated Loading capacity		5,000 kg
		Gross weight		73,00 kg
Chassis		Drive modle		4X2 left hand drive
		Front axle		2.5ton loading capacity
		Rear axle		4.8ton loading capacity
		Wheel Base		3360mm
		Front/rear suspension		1032/2138mm
		Approach/departure angle		24/12(°)
		Tyre size & number		7.00-16. with one spare tyre
		Max speed		105km/h
Engine		Model		4KH1-TCG40
		Engine Type		Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail
		Horse power		88kw/120hp
		Displacement		2999cc
		Emission		Euro 4
Garbage tank		Volume of compartment		5m3
		Thickness		Side :4mm ; Bottom:4mm
		Material		Carbon steel,inner epoxy anticorrosive
		Function		Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket

Operational:Compactor garbage truck loading volume: 4-22m3
Euro standard : Euro 4-6
Operation system: PLC or CAN
Tail turnover mechanism: dustpan hopper, trash bin, Fully sealed bucket.
» III.Product Details:
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5.promptly delivery. any order is welcome.

We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

» IV.Company Intorduce:

» V. Professional packing and transprotation:

Thick wax polished on products before shipping to protect. Use container, RORO/bulk ship or others as your requirement. We provide transportation insurance to guarantee the new and great condition of products for customers YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!

---
