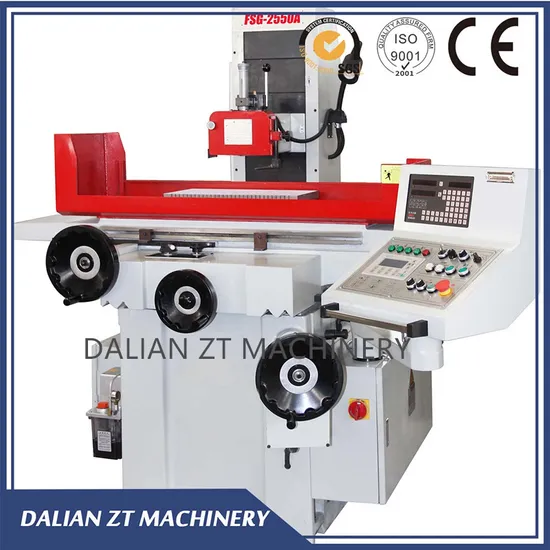

Small Manual Reilable (PLC) Surface Grinding Machine

Product Description

Features:
Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding. Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).
CE standard electric requirements;
Independent hydraulic station;
Turcite coated guide way;

Item	FSG-2550M	FSG-2550R	FSG-2550A
Table size	254*508mm	254*508mm	254*508mm
Magnetic chuck size	250*500mm	250*500mm	250*500mm
Max. Distance from spindle center to table	450mm	450mm	450mm
Table cross travel	275mm	275mm	275mm
Table longitudinal travel	560mm	560mm	560mm
Max. Loading capacity (including chuck)	180kg	180kg	180kg
Speed of table longitudinal movement	5-25m/min	5-25m/min	5-25m/min
Cross movement of table
Intermittent feed ratio	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t
Rapid speed	990mm/min	990mm/min	990mm/min
Feed of handwheel	0.02mm/div.	0.02mm/div.	0.02mm/div.
Vertical movement of grinding head
Auto down feed ratio	---	---	0.05-0.5mm/t
Rapid down speed	---	650mm/min	480mm/min
Feed of handwheel	0.005mm/div		0.005mm/div
Spindle rotating speed	2850(50Hz)/3450(60Hz)
Grinding wheel size	200x20x31.75mm
Spindle motor power	2.2kW
Floor space (LxWxH)	2300x1600x1675mm
Gross weight	1800kg
Packing size(LXWxH)	2000x2100x2150mm

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
