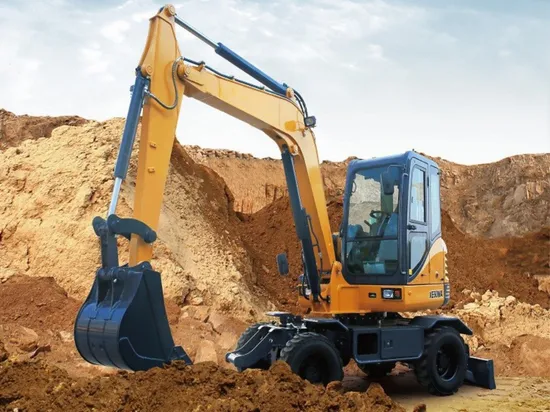

6-Ton Xe60ga Digger with Standard Piping for Construction Projects

Product Description

Product Description
1. Equipped with imported engine, meeting the National IV emission standards, it is economical and environmentally friendly, and the product dimensions comply with road regulations and transportation requirements, making it easier to transfer between sites;
2. The cab complies with ROPS certification. It comes standard with a rear camera and various work lights, reflectors, etc. to eliminate blind spots in the field of vision during operation and driving. It is safe and guaranteed. It is equipped with a new air conditioner, with stronger cooling and heating capabilities and less noise. The design of large wrapped seats and integrated armrest box relieves work fatigue and improves long-term working comfort;
3. Optimize engine transient response performance, perfectly match the hydraulic system, and achieve the best balance of high efficiency and low fuel consumption in the low-speed working area. The vehicle's forward, neutral, reverse and high/low gears are located on the right joystick, which conforms to road equipment operating habits and has cruise and slow-motion functions;
4. All parameters of the whole machine have been strictly assessed and measured to ensure the reliability and stability of the product. Ultra-long maintenance cycle and ground-accessible maintenance are convenient and fast, saving time and worry;
5. The product comes standard with a breaker pipeline and a dozer blade, and can be optionally equipped with a multi-functional tool system, quick changer and front outriggers, which can meet the needs of different operations such as excavation, crushing, grabbing, shearing, and pushing.

Description		Unit	Parameter value
Operating weight		Kg	6000
Bucket capacity		m³	0.4-0.52
Engine	Model	/	BB-4BG1TRP
	No. of cylinders	/	4
	Output power	kw/rpm	72.7/2200
	torque/speed	N.m	337.6/1600
	Displacement	L	4.329
Hydraulic system	Main pump	/	2
	Rated flow of main pump	L/min	2×123
	Pressure of prime valve	MPa	31.4/34.3
	Pressure of travel system	MPa	34.3
	Pressure of swing system	MPa	25
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine oil capacity	L	14
Appearance size	Overall length	mm	7770
	Overall width	mm	2512
	Overall height	mm	2880
	Width of platform	mm	2512
	Length of crawler	mm	3660
	Overall width of chassis	mm	2490
	Width of crawler	mm	500
	Track length on ground	mm	2910
	Crawler gauge	mm	1990
	Clearance under counterweight	mm	964
	Min. ground clearance	mm	478
	Min. tail swing radius	mm	1805
	Height of track	mm
Working scope	Max. digging height	mm	8641
	Max. dumping height	mm	6181
	Max. digging depth	mm	5538
	Max. vertical wall digging depth	mm	4727
	Max. digging reach	mm	8296
	Min. swing radius	mm	2335
Worker	Length of boom (Standard)	mm	4600
	Length of arm (Standard)	mm	2510
	Bucket capacity (Standard)	m³	0.52
	Length of boom (Optional)	m³	/
	Length of arm (Optional)	m³	/
	Bucket capacity (Optional)	m³	0.4
