Product Description
Product Description

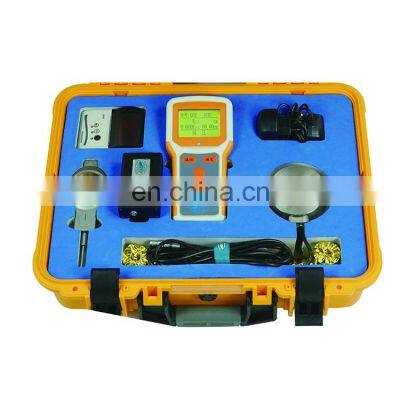

Ev2 Plate Bearing Test Set Static Deformation Testing MachineUsage Overview1. Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. 2. It is suitable for monitoring and monitoring the construction quality of railway, highway,airport, urban traffic, port, wharf and industrial and civil building subjected to static load.3. After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.Product Features1.Imported sensors and parts of components are used to achieve high test accuracy.2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments.5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.6.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.6.USB transmission interface, easy to connect with the computer.SpecificationProductStatic Deformation Testing Plate Bearing Test SetApplicationEffective depth0~ 500mmWorking ambientWorking ambient -10℃~40℃ Humidity <90%HRElecteic sedimentation meterSizeScreen size:3inchOverall size:100×205×40mmNet weight:0.8kgStorage amount400 groups testing curvePowder supplyLithium battery, over 18hrs continuous work timeDisplay methodChinese/EnglishPrinterConnection methodWireless Bluetooth printerTransducerPressure range100kNDisplacement range25mmDisplacement resolution0.01mmMeasure deviceBearing plateDiameter:300mmThickness:25mmWeight:17.5kgLoading deviceHydraulic pump:100kNhigh pressure tube:2mOil cylinder extensible rod:1*90mm,1*120mm,1*160mm,1*160mm,2*60mmSedimentation measure deviceThree point frame (with flexible and rotary lever arm, adjustable base)Dimension:2320*570*420mmWeight:12.5kgOur Advantagesa. Package: Each product is individually packaged, providing instructions for chargers etc.b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.c. Operation: Simple operation, fast test speed, detection point only 35 seconds.If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!Our customerPacking & Delivery · Tianjin port or Qingdao Port deliver by sea and also can ship by air via express companyCompany ProfileCangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.All our products are made in China. Excellent quality with competitive price.FAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3: How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
>>
