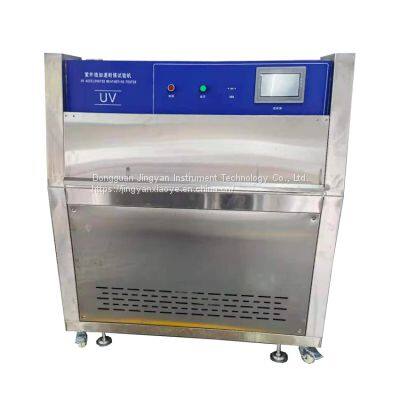

ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment
The test chamber can simulate the damage caused by the sun and rain, the use of fluorescent ultraviolet light to simulate the sun, the use of distilled water spray simulation of the effect of rain. The test material is placed in a light cycle at a certain temperature in the cycle of the program. The machine with a few days or weeks to reproduce the outdoor months or years out of the harm.
UV lamp
| UVA-340 UV lamp, a total of 8, 40W / only
|
Wavelength range
| 315 ~ 400nm
|
Light source working life
| 1500h
|
Temperature range
| RT + 10 ℃ ~ 70 ℃
|
Temperature resolution
| 0.1 ℃
|
Temperature uniformity
| ± 3 ℃
|
Temperature control mode
| PID self-tuning temperature control
|
Humidity range
| ≥75% RH
|
Test sample and lamp center distance
| 25 ~ 45mm
|
Studio size
| 660 × 1150 × 600mm (depth × width × height)
|
Overall dimensions
| about (780 x 1380 x 1780) mm
|
Control system
| TEMI880 touch screen, PLC programmable controller
|
