CO2 Laser Cutting Machine 1530 Model Water Cooling Nonmetal Cut Wood MDF Acrylic Big Bed

Product Description

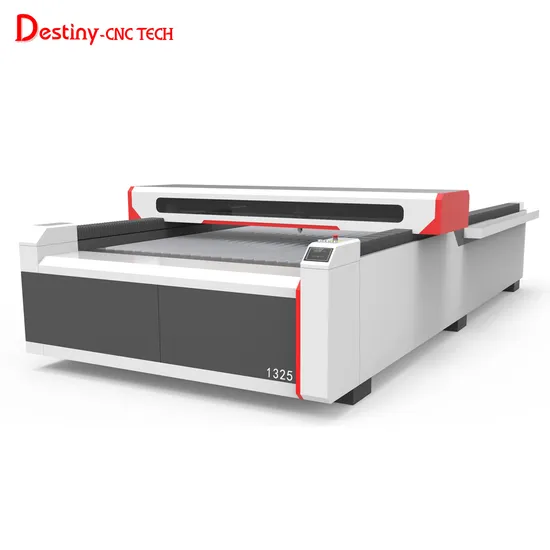

DT-1530E High configurations CO2 Laser engraving & cutting machine
Machine Features
China top brand CO2 glass laser tube, laser power available: 80W, 100W, 130W, 150W, 180W,220W,300W,400W,500W,600W . The machine engraves and cuts non-metals. 80W-100W do both engraving and cutting. 130W and above mainly cuts, also engrave lines.
Machine transmission is integrated guide bar. Rail and belt are integrated. X axis is belts transmission , Y axis is Rack pinion transmission , Bigger slider reduces resonance so that cutting precision is better.
High power industrial water cooling system cools the CO2 laser tube and ensure stable laser output.
RDC6445S,POWERCUT 4142G, POWERCUT4311 or AWC7824 CNC control system with laser software support files: DXF, PLT, AI, LXD, BMP, etc. Machine read files from computer, and from USB flash as well.
Precision stepper motors with ratio gear, cutting edge is more smooth.
Air assist during cutting, removes heat and combustible gases from the cutting surface.
Extractors removes fumes and dusts caused during cutting.
Based on your working requirements, we have some optional functions for your choice:
- red dot, showing position of laser dot on material.
- motorized up-down table, allowing more space for thicker or bigger items processing.
- rotary, assisting cylindrical items processing.
- auto focus, replacing manual focus which improves working efficiency.
- Solenoid valve, allowing air blowing only during cutting.
- Safety lock, stopping machine when you open the machine cover which has more safety for user.
- other functions we can customize upon request. Technical Parameters

Model	DT-1530E
Laser power	60w, 80w, 100w, 130w, 150w,180w,220w,300w,400w,500w,600w
Laser type	CO2 glass laser tube, wavelength 10.6μm, water-cooled
Engraving speed	0-70000mm/min
Cutting speed	0-30000mm/min
Repeating location	≤±0.01
Transmission type	Module high configurations transmission
Driving system	Servo motors & Drivers
Machine table	Blade table (alternative: honeycomb table)
Graphic format supported	*.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Software supported	CoreDraw,Auto CAD
Control system	POWERCUT 4311, RUIDA RDC6445S , AWC7824G etc. Control system
Laser power	0~100% adjustable
Minimum letter size	Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage	Single phase 220V/50Hz (Optional: 220V/60Hz)
Working condition	Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 Laser working capacity
Machine configuation details
Samples
Warranty and after-sales service
1. Two years guarantee for the whole laser machine, the CO2 laser tube warranty is 10-18 months. If the machine is with any problem, our technician will help to solve online first time. If the laser tube is with problems , we need you to take one video with the tube working situation, brand label ,tube double metal sides, mirror inside of tube etc. details. After confirming by RECI tube company , they will free change new one for you and send to you by express.
2. We have got CE&FDA certificate, all the machines are produced according to standard to keep the quality.
3. We have excellent English technician team , they are available at 24 hours online .No time difference limitation . Can supply the solution for any problems. In addition ,appoint technician to your country is available if you need .
4. There are detail machine operation manual sent together with the machine and pdf. file .

---
