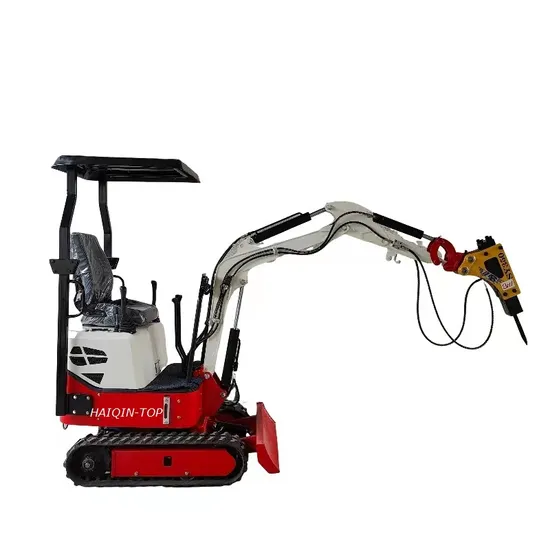

Made in China New Designed (HQ810E) Electric Excavator

Product Description

1, Mini Electric Excavator HQ810E Features:
1)Energy saving and environmental protection
2)Zero emission and zero noise
3)Charging 4 hours for continuously working 15 hours
4)Energy consumption only 1 kilowatt/hour
2, Mini Electric Excavator HQ810E Specifications :

Operation weight	Kg	1000
Size	mm	2770*896*1490
Bucket capacity	M³	0.026
Wheel base	mm	880
Track length	mm	1090
width	mm	896
Track width	mm	170
Track height	mm	320
Ground clearance	mm	380
Min turning radius	mm	1190
Max digging height	mm	2490
Max dumping height	mm	1750
Max digging depth	mm	1400
Max digging radius	mm	2400
Maximum vertical excavation depth	mm	1320
Maximum elevation of bulldozer production	mm	325
Maximum excavation depth for bulldozers	mm	175
Power		6kw
rated operational voltage		72V
Charging voltage (outlet 110V)		220/110V
Battery capacity		lithium battery 150AH;10.8KWH
Motor torque		22-90N.m
Battery type		lithium battery
Electric motor type		DC air-cooled permanent magnet synchronization
Controller		Air cooled aluminum shell integrated electrical appliances

3, Details photos of HQ810E Mini Electric Excavator
4, Exhibitions of HaiqinTop Machinery
5, Certificate of HaiqinTop Machinery
6, MORE PRODUCT CATEGORIES OF HAIQIN-TOP MACHINERY
7, Warranty and Service.
HAIQIN-TOP excavator has One Year Warranty.
During Warranty, if there is any part broken because of quality problem (except
easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN-TOP, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!
